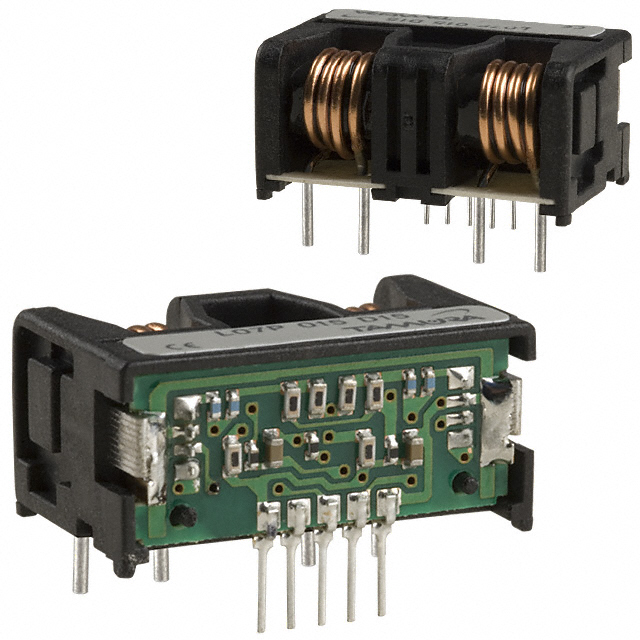

L07P015D15S
SENSOR CURRENT HALLManufacturer: Tamura
Categories: Current Sensors
Quality Control: Learn More
Tamura L07P Series Hall Effect Current Sensor Module, part number L07P015D15S. This open-loop, bidirectional module offers two channels for sensing currents up to 15A, suitable for both AC and DC measurements. Featuring a ratiometric voltage output with a linearity of ±1%, it provides precise current monitoring. The device operates on a ±15V supply voltage and consumes a maximum of 30mA. With a response time of 5µs and an operating temperature range of -30°C to 80°C, this through-hole mounted component is engineered for demanding applications in automotive, industrial automation, and power supply systems. The bulk packaging facilitates efficient integration into high-volume production environments.
Additional Information
Series: L07PRoHS Status: RoHS CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Polarization | Bidirectional |
| Sensitivity | - |
| Mounting Type | Through Hole |
| Output | Ratiometric, Voltage |
| Frequency | - |
| Accuracy | - |
| Operating Temperature | -30°C ~ 80°C |
| Voltage - Supply | ±15V |
| Response Time | 5µs |
| Sensor Type | Hall Effect, Open Loop |
| Linearity | ±1% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 30mA |
| Current - Sensing | 15A |
| Number of Channels | 2 |
