L03S200D15
SENSOR CURRENT HALL 200A AC/DCManufacturer: Tamura
Categories: Current Sensors
Quality Control: Learn More

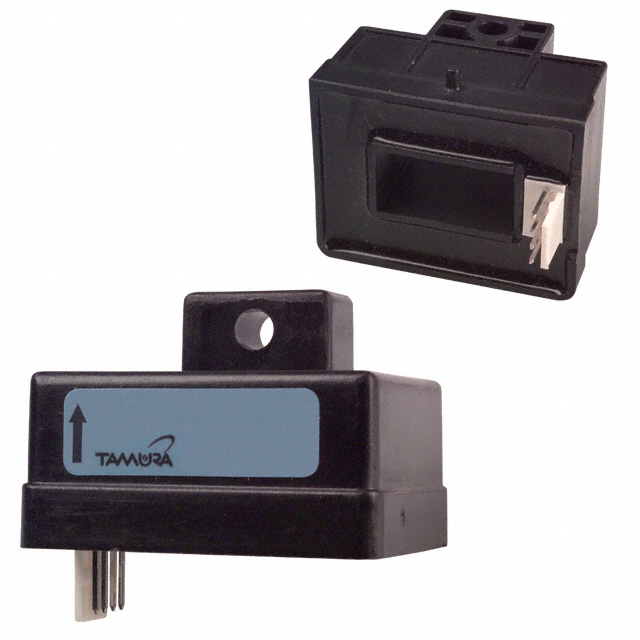

The Tamura L03S200D15 is an open-loop Hall effect current sensor module designed for bidirectional AC/DC current measurement up to 200A. This single-channel device offers ±1% accuracy and ±1% linearity across its operating frequency range of DC to 50kHz. It operates with a supply voltage of ±15V, drawing a maximum of 12mA. The output signal is ratiometric voltage, with a response time of 5µs. Mounting is via through-hole. This component is suitable for applications in industrial automation, power supplies, and electric vehicle charging systems.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Polarization | Bidirectional |
| Sensitivity | - |
| Mounting Type | Through Hole |
| Output | Ratiometric, Voltage |
| Frequency | DC ~ 50kHz |
| Accuracy | ±1% |
| Operating Temperature | -20°C ~ 80°C |
| Voltage - Supply | ±15V |
| Response Time | 5µs |
| Sensor Type | Hall Effect, Open Loop |
| Linearity | ±1% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 12mA |
| Current - Sensing | 200A |
| Supplier Device Package | - |
| Number of Channels | 1 |
