L01Z050S05
SENSOR CURRENT HALL 50A AC/DCManufacturer: Tamura
Categories: Current Sensors
Quality Control: Learn More

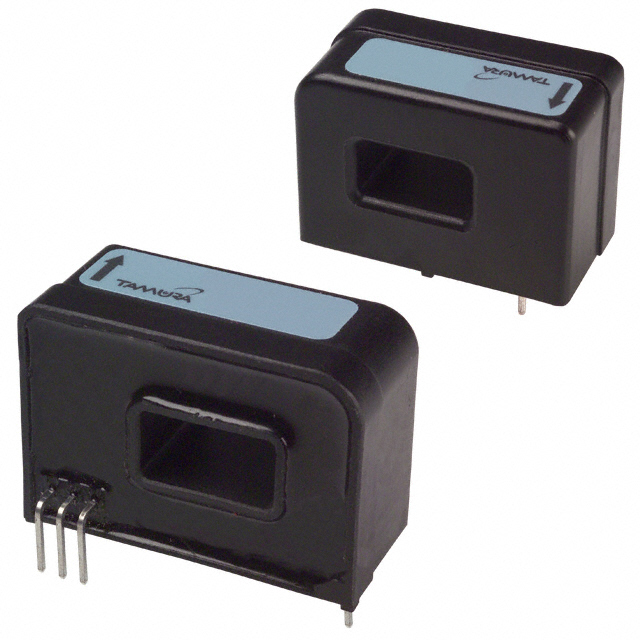

Tamura L01Z050S05 is a 50A, single-channel, open-loop Hall effect current sensor module designed for AC and DC measurements. This bidirectional sensor operates with a nominal supply voltage of 5V and a maximum supply current of 15mA. It offers a ±1% linearity and a wide frequency response from DC up to 100kHz, with a response time of 10µs. The ratiometric voltage output is suitable for applications requiring precise current monitoring. Mounting is facilitated via through-hole technology. This component is commonly utilized in industrial automation, power supplies, and electric vehicle systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Polarization | Bidirectional |
| Sensitivity | - |
| Mounting Type | Through Hole |
| Output | Ratiometric, Voltage |
| Frequency | DC ~ 100kHz |
| Accuracy | - |
| Operating Temperature | -10°C ~ 80°C |
| Voltage - Supply | 5V |
| Response Time | 10µs |
| Sensor Type | Hall Effect, Open Loop |
| Linearity | ±1% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 15mA |
| Current - Sensing | 50A |
| Supplier Device Package | - |
| Number of Channels | 1 |
