F01P006S05
SENSOR CURRENT FLUX GATE 6A ACManufacturer: Tamura
Categories: Current Sensors
Quality Control: Learn More

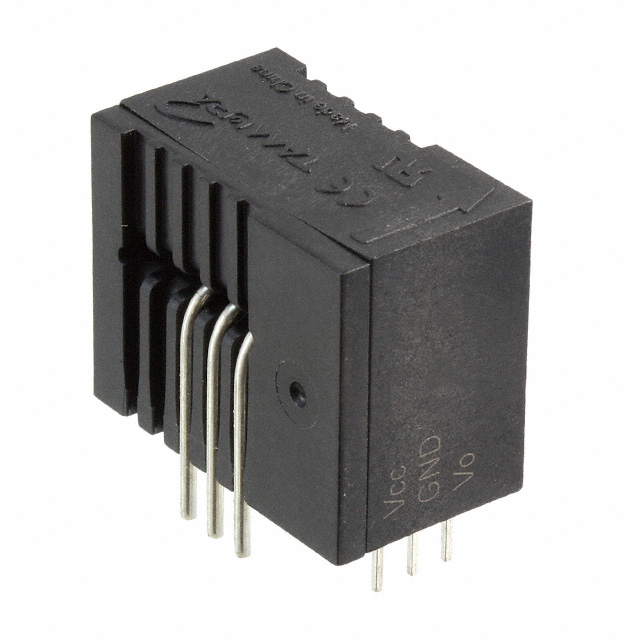

Tamura F01P Series Flux Gate Current Sensor, Part Number F01P006S05. This closed-loop, bidirectional flux gate module accurately measures AC current up to 6A with a sensing frequency of 300kHz. It offers ±2.5% accuracy and ±1% linearity, providing a ratiometric voltage output. Designed for a 5V supply, it draws a maximum of 25mA and features a fast 0.3µs response time. The sensor operates within a -40°C to 105°C temperature range and is available in a through-hole mounted module package. This component is suitable for applications in industrial automation, power supplies, and electric vehicle charging systems.
Additional Information
Series: F01PRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Polarization | Bidirectional |
| Sensitivity | 104.2mV/A |
| Mounting Type | Through Hole |
| Output | Ratiometric, Voltage |
| Frequency | 300kHz |
| Accuracy | ±2.5% |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply | 5V |
| Response Time | 0.3µs |
| Sensor Type | Flux Gate, Closed Loop |
| Linearity | ±1% |
| For Measuring | AC |
| Current - Supply (Max) | 25mA |
| Current - Sensing | 6A |
| Supplier Device Package | - |
| Number of Channels | 1 |
