NRS5040T330MMGJ
FIXED IND 33UH 1.2A 234 MOHM SMDManufacturer: Taiyo Yuden
Categories: Fixed Inductors
Quality Control: Learn More

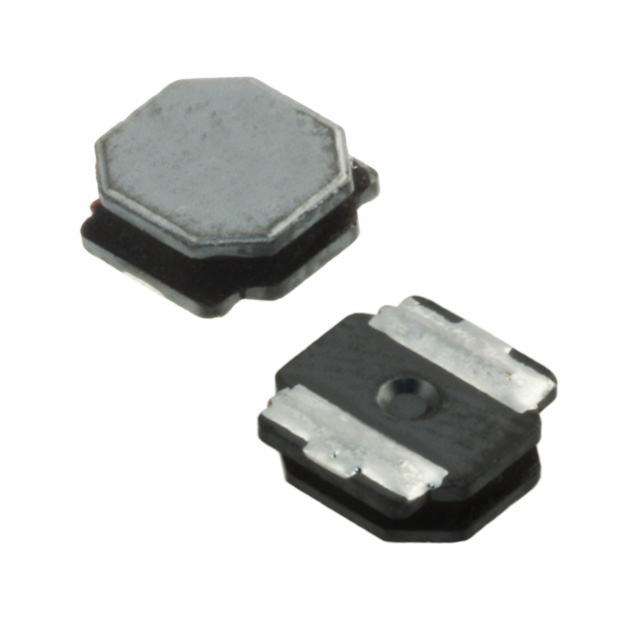

Taiyo Yuden NR, S Type NRS5040T330MMGJ is a shielded, wirewound drum core inductor with an inductance of 33 µH and a tolerance of ±20%. This component boasts a current rating of 1.2 A and a saturation current (Isat) of 1.3 A. The maximum DC resistance (DCR) is 234 mOhm. Designed for surface mounting, it features a compact footprint with dimensions of 0.193" L x 0.193" W (4.90mm x 4.90mm) and a seated height of 0.157" (4.00mm). The operating temperature range is -25°C to 120°C. This inductor is commonly utilized in automotive, industrial, and consumer electronics applications requiring efficient power management and noise suppression. It is supplied on tape and reel.
Additional Information
Series: NR, S TypeRoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard |
| Size / Dimension | 0.193"" L x 0.193"" W (4.90mm x 4.90mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Drum Core, Wirewound |
| Operating Temperature | -25°C ~ 120°C |
| DC Resistance (DCR) | 234mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 7MHz |
| Ratings | - |
| Current - Saturation (Isat) | 1.3A |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 100 kHz |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.157"" (4.00mm) |
| Inductance | 33 µH |
| Current Rating (Amps) | 1.2 A |
