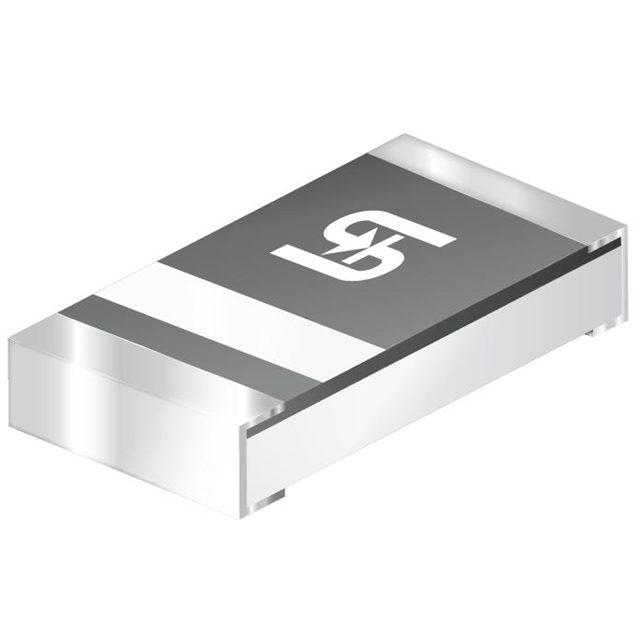

BZS55C22 RAG
DIODE ZENER 22V 500MW 1206Manufacturer: Taiwan Semiconductor Corporation
Categories: Single Zener Diodes
Quality Control: Learn More
Zener Diode 22 V 500 mW ±5% Surface Mount 1206
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1206 (3216 Metric) |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Voltage - Zener (Nom) (Vz) | 22 V |
| Impedance (Max) (Zzt) | 55 Ohms |
| Supplier Device Package | 1206 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 10 mA |
| Current - Reverse Leakage @ Vr | 100 nA @ 16 V |
