TSM60N380CH C5G
MOSFET N-CH 600V 11A TO251Manufacturer: Taiwan Semiconductor Corporation
Categories: Single FETs, MOSFETs
Quality Control: Learn More

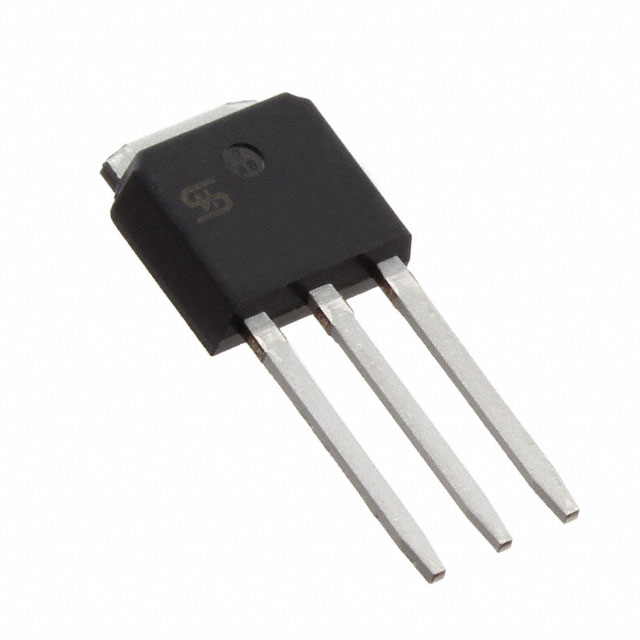

The Taiwan Semiconductor Corporation TSM60N380CH-C5G is an N-Channel Power MOSFET designed for high-voltage applications. Featuring a Drain-to-Source Voltage (Vdss) of 600V, this device offers a continuous drain current capability of 11A at 25°C (Tc) and a maximum power dissipation of 125W (Tc). The Rds On is specified at 380mOhm maximum at 5.5A and 10V Vgs. Key parameters include a gate charge (Qg) of 20.5 nC (Max) at 10V and input capacitance (Ciss) of 1040 pF (Max) at 100V Vds. The MOSFET is housed in a TO-251 (IPAK) package with through-hole mounting. Operating temperature ranges from -55°C to 150°C (TJ). This component is suitable for use in power supplies, industrial motor control, and lighting applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-251-3 Short Leads, IPAK, TO-251AA |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 11A (Tc) |
| Rds On (Max) @ Id, Vgs | 380mOhm @ 5.5A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 125W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Supplier Device Package | TO-251 (IPAK) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±30V |
| Drain to Source Voltage (Vdss) | 600 V |
| Gate Charge (Qg) (Max) @ Vgs | 20.5 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1040 pF @ 100 V |
