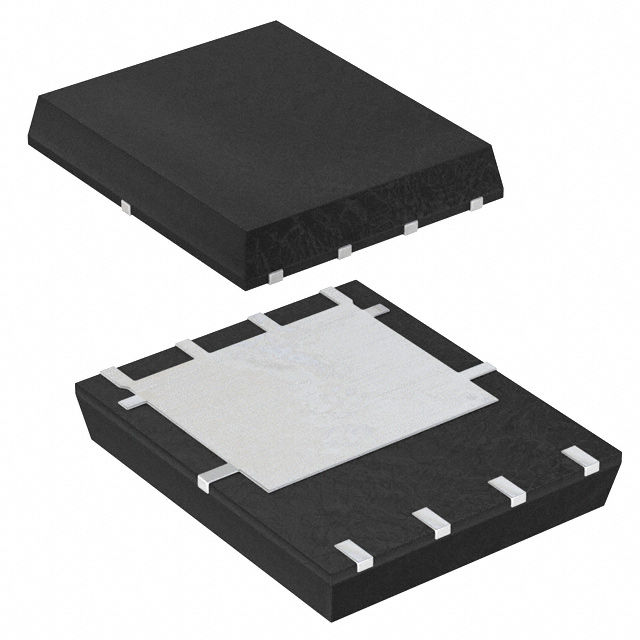

TSM080N03EPQ56 RLG
MOSFET N-CH 30V 55A 8PDFNManufacturer: Taiwan Semiconductor Corporation
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 30 V 55A (Tc) 54W (Tc) Surface Mount 8-PDFN (5x6)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerTDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 55A (Tc) |
| Rds On (Max) @ Id, Vgs | 8mOhm @ 16A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 54W (Tc) |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Supplier Device Package | 8-PDFN (5x6) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 7.5 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 750 pF @ 25 V |
Request a Quote
