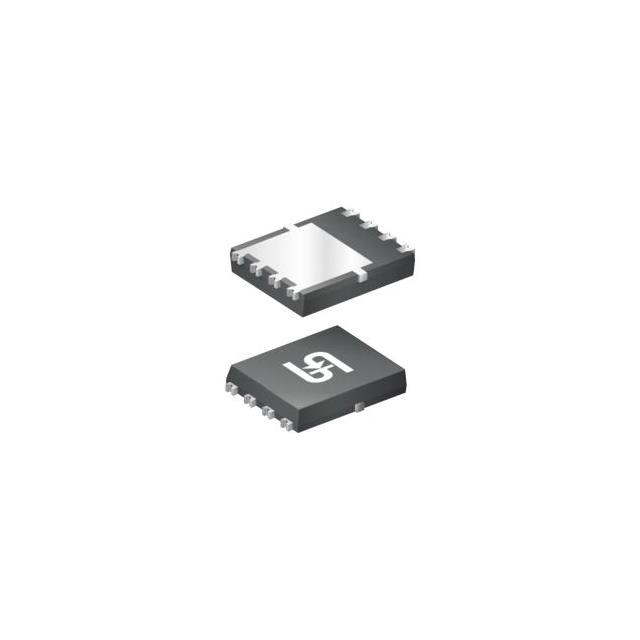

TQM056NH04CR RLG
40V, 54A, SINGLE N-CHANNEL POWERManufacturer: Taiwan Semiconductor Corporation
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 40 V 17A (Ta), 54A (Tc) 78.9W (Tc) Surface Mount, Wettable Flank 8-PDFNU (4.9x5.75)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerTDFN |
| Mounting Type | Surface Mount, Wettable Flank |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 17A (Ta), 54A (Tc) |
| Rds On (Max) @ Id, Vgs | 5.6mOhm @ 27A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 78.9W (Tc) |
| Vgs(th) (Max) @ Id | 3.6V @ 250µA |
| Supplier Device Package | 8-PDFNU (4.9x5.75) |
| Grade | Automotive |
| Drive Voltage (Max Rds On, Min Rds On) | 7V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 40 V |
| Gate Charge (Qg) (Max) @ Vgs | 41 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 2912 pF @ 25 V |
| Qualification | AEC-Q101 |
Request a Quote
