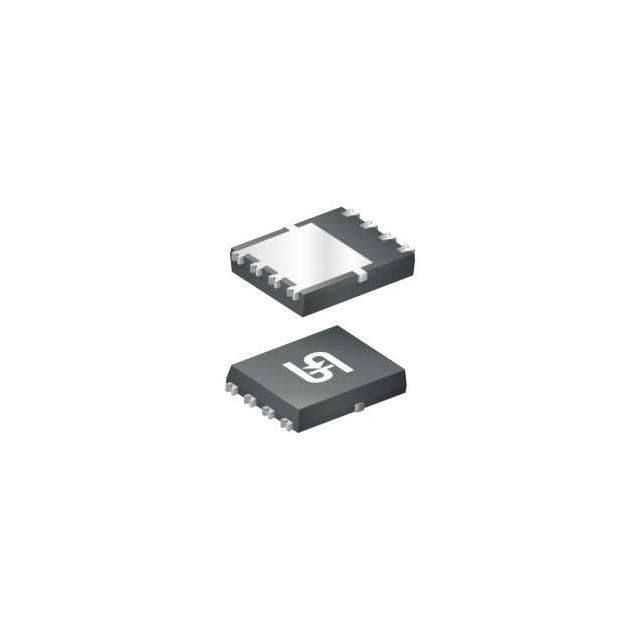

TQM025NH04LCR RLG
40V, 100A, SINGLE N-CHANNEL POWEManufacturer: Taiwan Semiconductor Corporation
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 40 V 26A (Ta), 100A (Tc) 136W (Tc) Surface Mount, Wettable Flank 8-PDFNU (4.9x5.75)
Additional Information
Series: PerFET™RoHS Status: unknownManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Digi-Reel®Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | 8-PowerTDFN |
| Mounting Type | Surface Mount, Wettable Flank |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 26A (Ta), 100A (Tc) |
| Rds On (Max) @ Id, Vgs | 2.5mOhm @ 50A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 136W (Tc) |
| Vgs(th) (Max) @ Id | 2.2V @ 250µA |
| Supplier Device Package | 8-PDFNU (4.9x5.75) |
| Grade | Automotive |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±16V |
| Drain to Source Voltage (Vdss) | 40 V |
| Gate Charge (Qg) (Max) @ Vgs | 95 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 6228 pF @ 25 V |
| Qualification | AEC-Q101 |
Request a Quote
