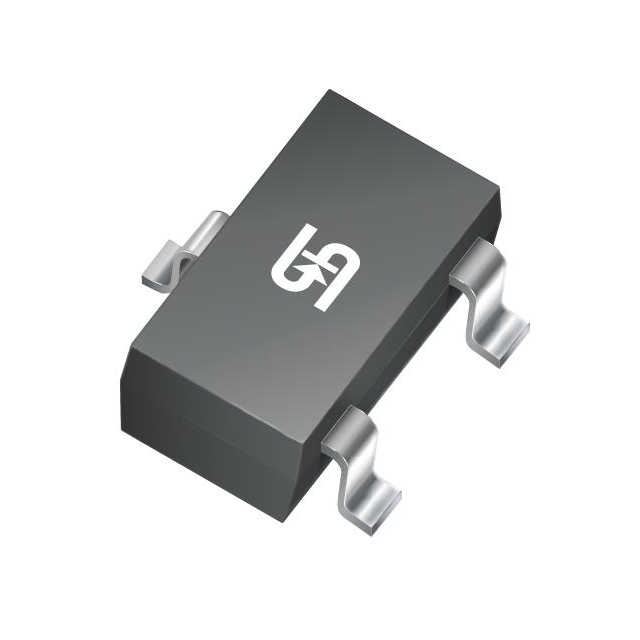

BSS123W RFG
100V, 0.16A, SINGLE N-CHANNEL POManufacturer: Taiwan Semiconductor Corporation
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 100 V 160mA (Ta) 298mW (Ta) Surface Mount SOT-323
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-70, SOT-323 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 160mA (Ta) |
| Rds On (Max) @ Id, Vgs | 5Ohm @ 160mA, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 298mW (Ta) |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Supplier Device Package | SOT-323 |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 100 V |
| Gate Charge (Qg) (Max) @ Vgs | 2 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 30 pF @ 50 V |
