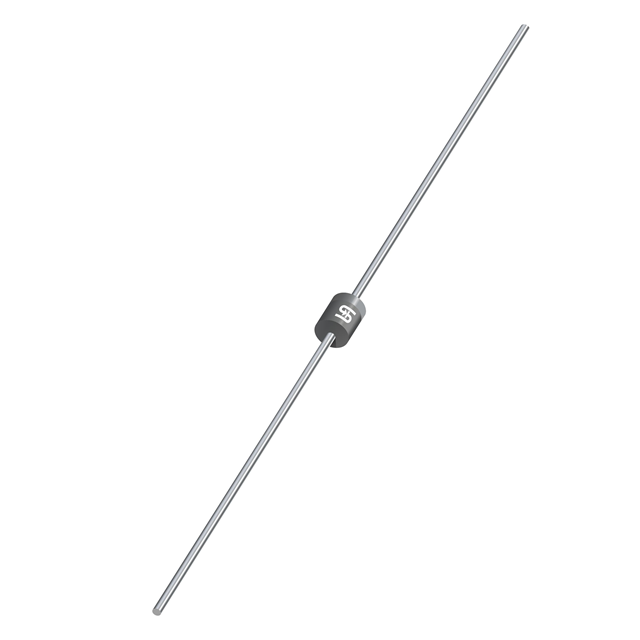

UG06DH
DIODE GEN PURP 200V 600MA TS-1Manufacturer: Taiwan Semiconductor Corporation
Categories: Single Diodes
Quality Control: Learn More
Diode 200 V 600mA Through Hole TS-1
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | T-18, Axial |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 15 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 9pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 600mA |
| Supplier Device Package | TS-1 |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Grade | Automotive |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Voltage - Forward (Vf) (Max) @ If | 950 mV @ 600 mA |
| Current - Reverse Leakage @ Vr | 5 µA @ 200 V |
| Qualification | AEC-Q101 |
