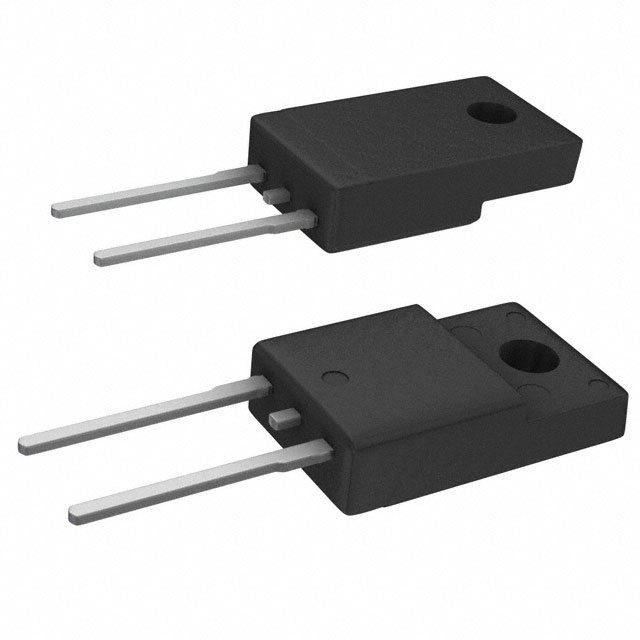

UF5JFC C0G
DIODE GEN PURP 600V 5A ITO220ACManufacturer: Taiwan Semiconductor Corporation
Categories: Single Diodes
Quality Control: Learn More
Taiwan Semiconductor Corporation UF5JFC-C0G is a general-purpose diode featuring a 600V reverse voltage and 5A average rectified current. This component utilizes standard technology and offers a fast recovery time of 25 ns. The forward voltage drop is a maximum of 2.8V at 5A, with a reverse leakage current of 30 µA at 600V. Capacitance is rated at 30pF @ 4V, 1MHz. The UF5JFC-C0G is housed in an ITO-220AC package, suitable for through-hole mounting. Its operating junction temperature range is -55°C to 150°C. This diode is commonly employed in power supply circuits, motor control, and industrial automation applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-2 Full Pack |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 25 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 30pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 5A |
| Supplier Device Package | ITO-220AC |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 2.8 V @ 5 A |
| Current - Reverse Leakage @ Vr | 30 µA @ 600 V |
