TUAS3DH
3A, 200V, STANDARD RECOVERY RECTManufacturer: Taiwan Semiconductor Corporation
Categories: Single Diodes
Quality Control: Learn More

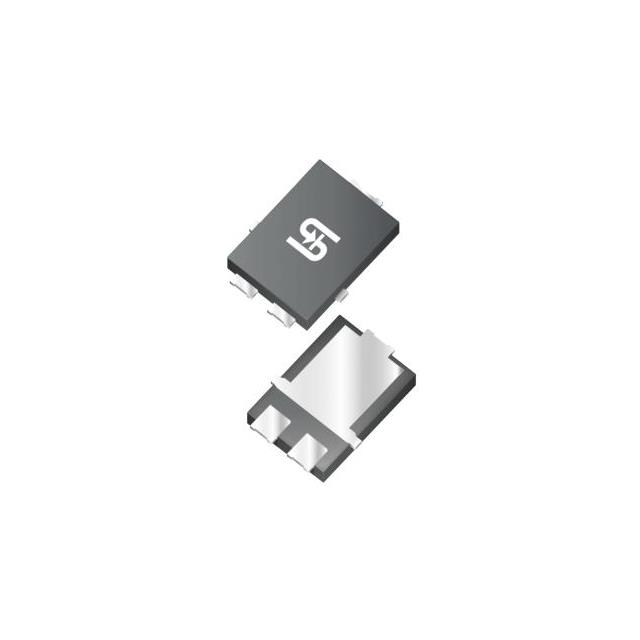

Diode 200 V 3A Surface Mount TO-277A (SMPC4.6U)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | TO-277, 3-PowerDFN |
| Mounting Type | Surface Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Capacitance @ Vr, F | 27pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 3A |
| Supplier Device Package | TO-277A (SMPC4.6U) |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Grade | Automotive |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 3 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 200 V |
| Qualification | AEC-Q101 |
