TSUP10H100H
10A, 100V, TRENCH SCHOTTKYManufacturer: Taiwan Semiconductor Corporation
Categories: Single Diodes
Quality Control: Learn More

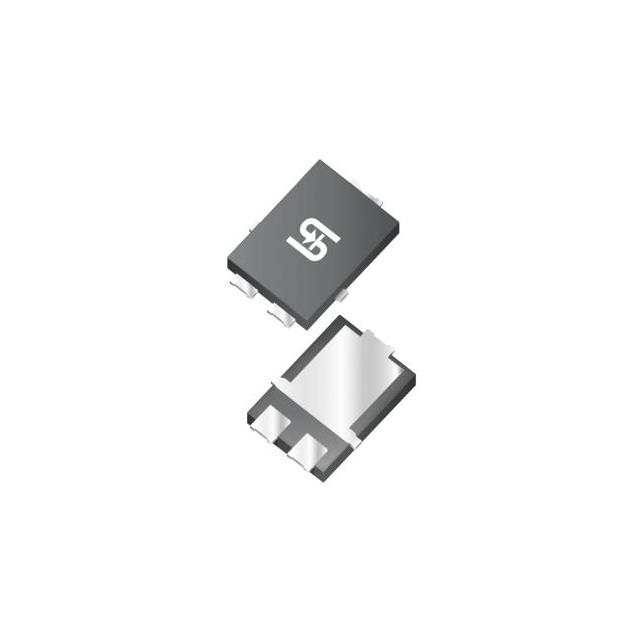

Diode 100 V 10A Surface Mount TO-277A (SMPC4.6U)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-277, 3-PowerDFN |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | 732pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 10A |
| Supplier Device Package | TO-277A (SMPC4.6U) |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Grade | Automotive |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 750 mV @ 10 A |
| Current - Reverse Leakage @ Vr | 50 µA @ 100 V |
| Qualification | AEC-Q101 |
