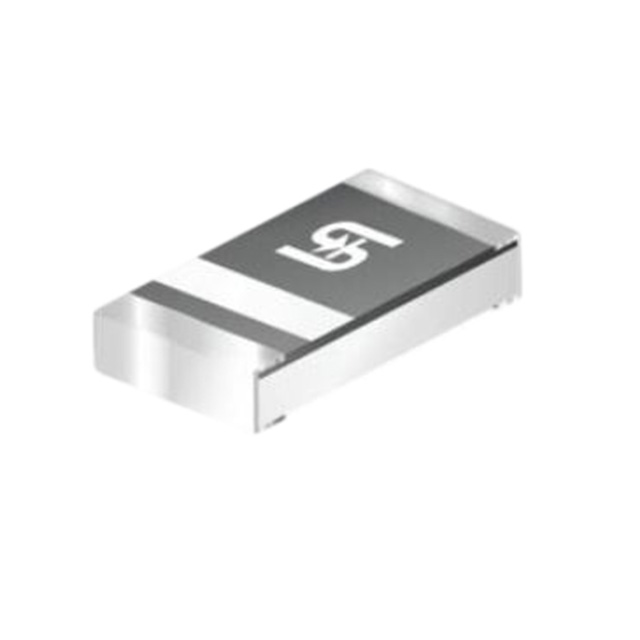

TSS0230LU RGG
DIODE SCHOTTKY 35V 200MA 0603Manufacturer: Taiwan Semiconductor Corporation
Categories: Single Diodes
Quality Control: Learn More
Taiwan Semiconductor Corporation's TSS0230LU-RGG is a Schottky diode designed for efficient rectification and switching applications. This 35V, 200mA device features a low forward voltage drop of 500 mV at 200 mA and a reverse leakage of 30 µA at 10V. The TSS0230LU-RGG is housed in a compact 0603 (1608 Metric) surface-mount package, delivered in tape and reel for high-volume manufacturing. Its construction makes it suitable for use in power management, signal processing, and general-purpose rectification across various electronic systems. The operating junction temperature range is -40°C to 125°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 0603 (1608 Metric) |
| Mounting Type | Surface Mount |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Technology | Schottky |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 200mA |
| Supplier Device Package | 0603 |
| Operating Temperature - Junction | -40°C ~ 125°C |
| Voltage - DC Reverse (Vr) (Max) | 35 V |
| Voltage - Forward (Vf) (Max) @ If | 500 mV @ 200 mA |
| Current - Reverse Leakage @ Vr | 30 µA @ 10 V |
