TSPB20U80S S2G

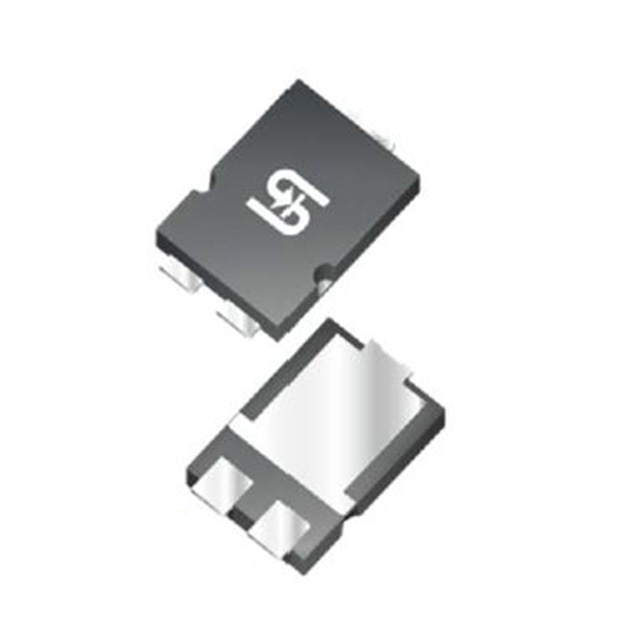

DIODE SCHOTTKY 80V 20A SMPC4.0Manufacturer: Taiwan Semiconductor Corporation
Categories: Single Diodes
Quality Control: Learn More
Taiwan Semiconductor Corporation's TSPB20U80S-S2G is an 80V Schottky rectifier designed for high-current applications. This surface-mount diode, housed in a TO-277, 3-PowerDFN (SMPC4.0) package, offers a forward voltage drop of 640mV at 20A and a reverse leakage of 300µA at 80V. With an average rectified forward current capability of 20A, it is suitable for power supply rectification, voltage clamping, and freewheeling applications within the automotive and industrial sectors. The component operates across a junction temperature range of -55°C to 150°C and is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-277, 3-PowerDFN |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 20A |
| Supplier Device Package | SMPC4.0 |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 80 V |
| Voltage - Forward (Vf) (Max) @ If | 640 mV @ 20 A |
| Current - Reverse Leakage @ Vr | 300 µA @ 80 V |
