TSP15U100S
DIODE SCHOTTKY 100V 15A TO277AManufacturer: Taiwan Semiconductor Corporation
Categories: Single Diodes
Quality Control: Learn More

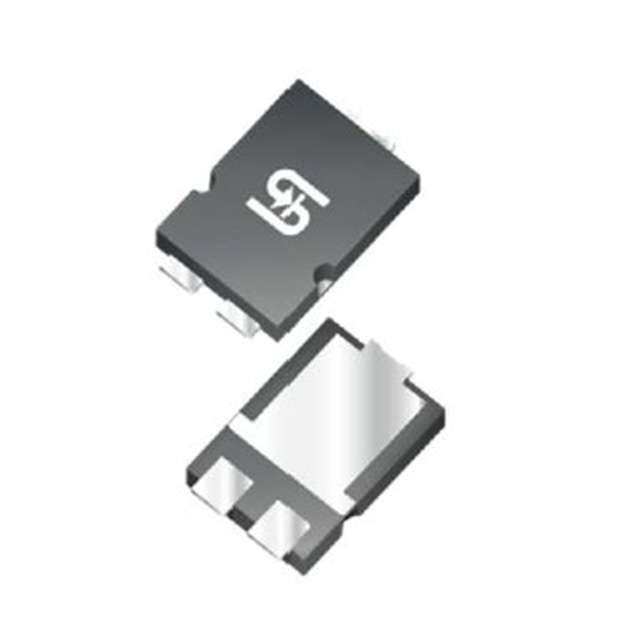

Taiwan Semiconductor Corporation's TSP15U100S is a 100V, 15A Schottky diode designed for surface mount applications within the TO-277A (SMPC) package. This component offers a maximum forward voltage of 700 mV at 15A and a reverse leakage current of 250 µA at its rated 100V reverse voltage. Operating across a junction temperature range of -55°C to 150°C, the TSP15U100S is suitable for demanding applications in power supplies, automotive electronics, and industrial control systems where efficient rectification and fast switching characteristics are critical. The device is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-277, 3-PowerDFN |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 15A |
| Supplier Device Package | TO-277A (SMPC) |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 700 mV @ 15 A |
| Current - Reverse Leakage @ Vr | 250 µA @ 100 V |
