TSCDT10065G1
DIODE SCHOTTKY 650V 10A TO220ACManufacturer: Taiwan Semiconductor Corporation
Categories: Single Diodes
Quality Control: Learn More

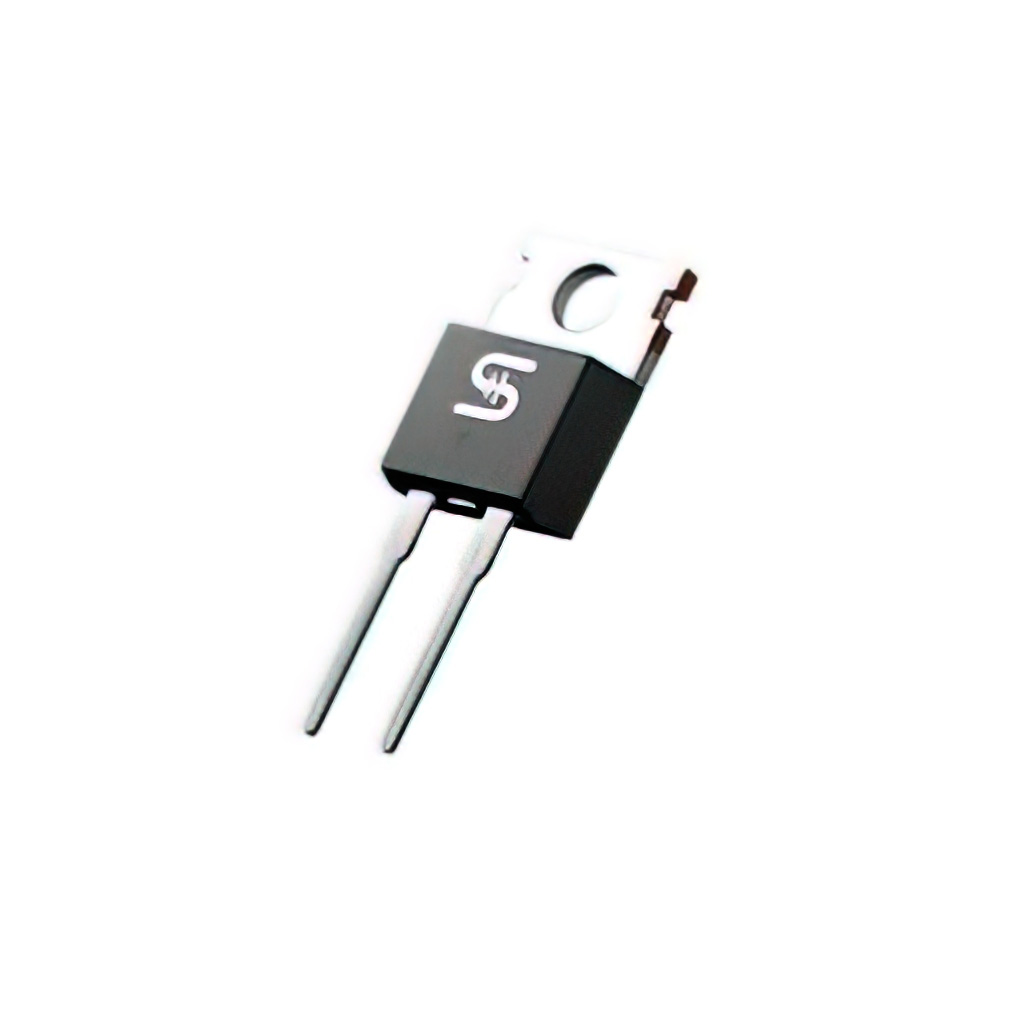

Taiwan Semiconductor Corporation TSCDT10065G1 is a 650V, 10A Schottky diode in a TO-220AC package. This through-hole component features a maximum forward voltage of 1.45V at 10A and a reverse leakage of 20µA at 650V. The junction operating temperature range is -55°C to 175°C. With no discernible recovery time for currents exceeding 500mA, this device is suitable for power supply applications, motor control, and renewable energy systems. The capacitance at 400V and 1MHz is 45pF.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 35 week(s)Product Status: ActivePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-2 |
| Mounting Type | Through Hole |
| Speed | No Recovery Time > 500mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | 45pF @ 400V, 1MHz |
| Current - Average Rectified (Io) | 10A |
| Supplier Device Package | TO-220AC |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Grade | - |
| Voltage - DC Reverse (Vr) (Max) | 650 V |
| Voltage - Forward (Vf) (Max) @ If | 1.45 V @ 10 A |
| Current - Reverse Leakage @ Vr | 20 µA @ 650 V |
| Qualification | - |
