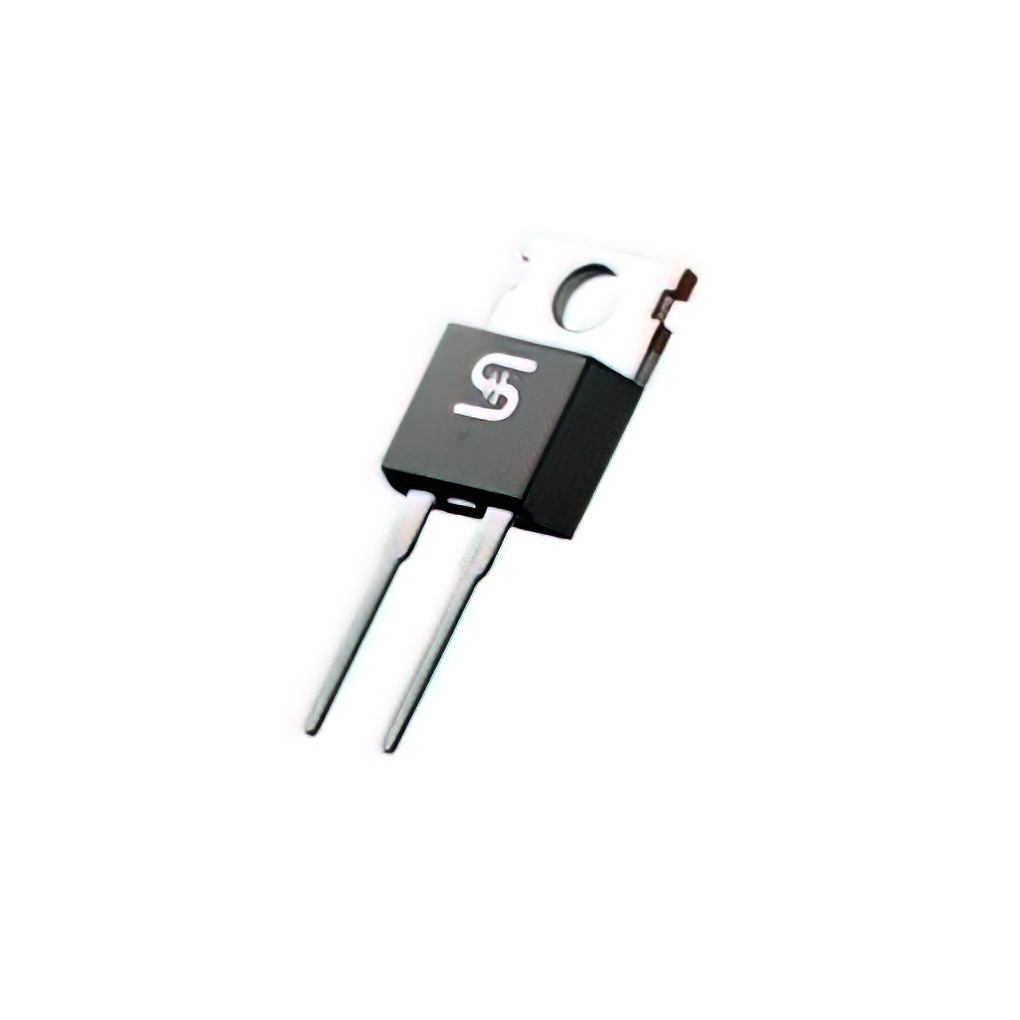

TSCDT06065G1
DIODE SCHOTTKY 650V 6A TO220ACManufacturer: Taiwan Semiconductor Corporation
Categories: Single Diodes
Quality Control: Learn More
Taiwan Semiconductor Corporation TSCDT06065G1 is a 650V Schottky diode designed for high-efficiency power conversion applications. This through-hole component, housed in a TO-220AC package, offers a maximum forward voltage (Vf) of 1.45V at 6A, contributing to reduced conduction losses. With an average rectified forward current (Io) of 6A and a low reverse leakage of 20 µA at 650V, it ensures minimal standby power consumption. The diode exhibits a capacitance of 30.5pF at 400V and 1MHz. Its operating junction temperature range of -55°C to 175°C makes it suitable for demanding environments. This device is commonly employed in power supply units, motor drives, and renewable energy systems where efficient rectification is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 35 week(s)Product Status: ActivePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-2 |
| Mounting Type | Through Hole |
| Speed | No Recovery Time > 500mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | 30.5pF @ 400V, 1MHz |
| Current - Average Rectified (Io) | 6A |
| Supplier Device Package | TO-220AC |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Grade | - |
| Voltage - DC Reverse (Vr) (Max) | 650 V |
| Voltage - Forward (Vf) (Max) @ If | 1.45 V @ 6 A |
| Current - Reverse Leakage @ Vr | 20 µA @ 650 V |
| Qualification | - |
