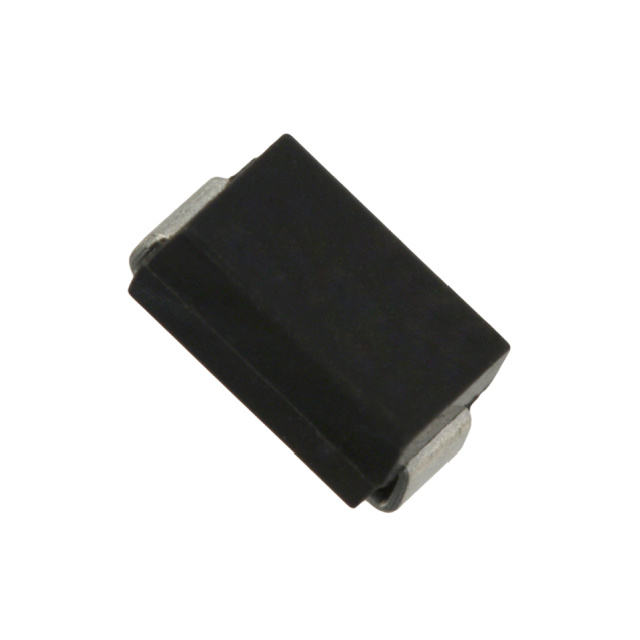

SSB44HR5G
DIODE SCHOTTKY 40V 4A DO214AAManufacturer: Taiwan Semiconductor Corporation
Categories: Single Diodes
Quality Control: Learn More
Taiwan Semiconductor Corporation SSB44HR5G is a Schottky barrier rectifier diode with a 40V reverse voltage rating and 4A average rectified forward current. Exhibiting a low forward voltage drop of 500mV at 4A, this device is housed in a DO-214AA (SMB) surface-mount package. The SSB44HR5G features a reverse leakage current of 200µA at 40V and a junction capacitance of 235pF at 4V and 1MHz. Qualified to AEC-Q101 standards and designated with an automotive grade, this component is suitable for demanding applications in the automotive sector. Its fast recovery characteristics are within the <500ns, >200mA (Io) range. The product is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-214AA, SMB |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | 235pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 4A |
| Supplier Device Package | DO-214AA (SMB) |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Grade | Automotive |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Voltage - Forward (Vf) (Max) @ If | 500 mV @ 4 A |
| Current - Reverse Leakage @ Vr | 200 µA @ 40 V |
| Qualification | AEC-Q101 |
