SR1504
DIODE SCHOTTKY 40V 15A R-6Manufacturer: Taiwan Semiconductor Corporation
Categories: Single Diodes
Quality Control: Learn More

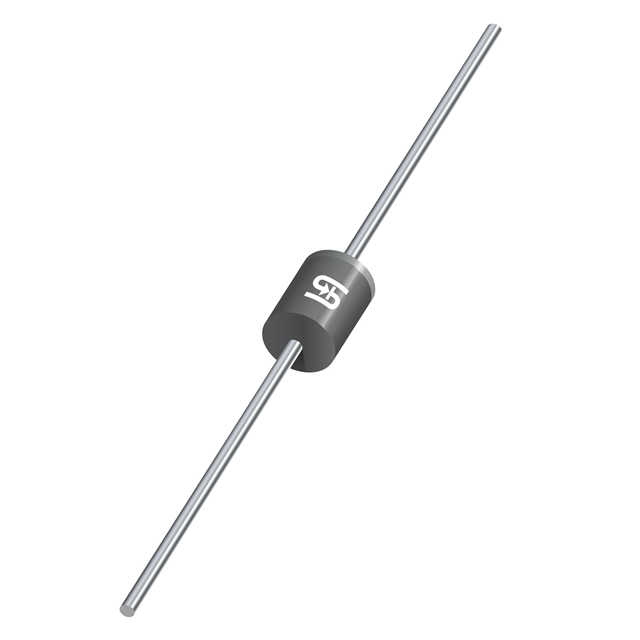

Taiwan Semiconductor Corporation SR1504 is a 40V, 15A Schottky diode in an R-6 axial package. This through-hole component offers a low forward voltage of 550mV at 15A and a reverse leakage current of 500 µA at 40V. Its operating junction temperature range is -50°C to 150°C. The SR1504 is suitable for applications requiring efficient rectification and low power loss, commonly found in power supply rectification, reverse polarity protection, and voltage clamping circuits within industrial and automotive sectors. This component is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | R-6, Axial |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 15A |
| Supplier Device Package | R-6 |
| Operating Temperature - Junction | -50°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Voltage - Forward (Vf) (Max) @ If | 550 mV @ 15 A |
| Current - Reverse Leakage @ Vr | 500 µA @ 40 V |
