SFAF1603G
35NS, 16A, 150V, SUPER FAST RECOManufacturer: Taiwan Semiconductor Corporation
Categories: Single Diodes
Quality Control: Learn More

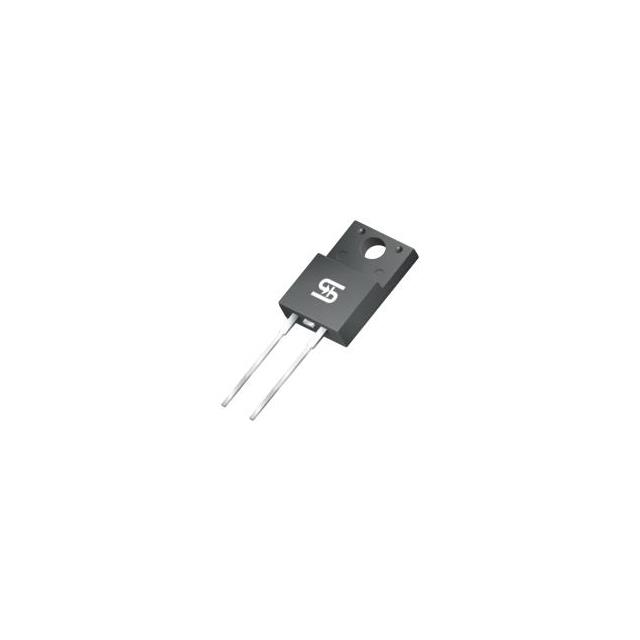

Diode 150 V 16A Through Hole ITO-220AC
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-2 Full Pack |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 35 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 130pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 16A |
| Supplier Device Package | ITO-220AC |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Grade | - |
| Voltage - DC Reverse (Vr) (Max) | 150 V |
| Voltage - Forward (Vf) (Max) @ If | 975 mV @ 16 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 150 V |
| Qualification | - |
