S4J R7G
DIODE GEN PURP 600V 4A DO214ABManufacturer: Taiwan Semiconductor Corporation
Categories: Single Diodes
Quality Control: Learn More

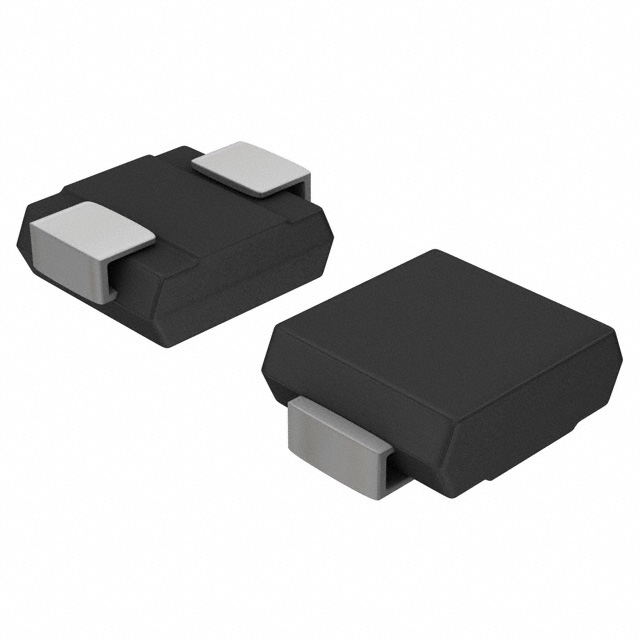

Taiwan Semiconductor Corporation S4J-R7G is a general-purpose diode with a 600V reverse voltage rating and a 4A average rectified forward current. This surface mount component, housed in a DO-214AB (SMC) package, features a maximum forward voltage of 1.15V at 4A. It exhibits a typical reverse leakage current of 10µA at 600V and a capacitance of 60pF at 4V and 1MHz. The operating junction temperature range is -55°C to 150°C. This diode is suitable for applications requiring fast recovery characteristics. Industries utilizing this component include industrial automation, power supplies, and lighting. It is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-214AB, SMC |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Standard |
| Capacitance @ Vr, F | 60pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 4A |
| Supplier Device Package | DO-214AB (SMC) |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.15 V @ 4 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 600 V |
