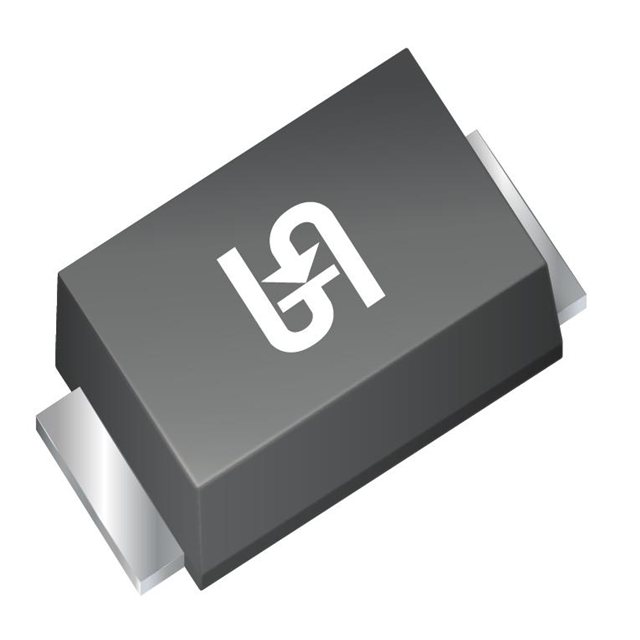

S1GLR2G
DIODE GEN PURP 400V 1A SUB SMAManufacturer: Taiwan Semiconductor Corporation
Categories: Single Diodes
Quality Control: Learn More
Taiwan Semiconductor Corporation's S1GLR2G is a general-purpose diode designed for demanding applications. This Sub SMA package component offers a 400V reverse voltage (Vr) and a 1A average rectified forward current (Io). Featuring a low forward voltage drop of 1.1V at 1A and a reverse leakage of only 5 µA at 400V, the S1GLR2G provides efficient rectification. Its standard recovery speed is rated at greater than 500ns. The device operates across a wide junction temperature range of -55°C to 175°C and includes a capacitance of 9pF at 4V and 1MHz. This component is commonly utilized in industrial, consumer electronics, and automotive power management systems. The S1GLR2G is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-219AB |
| Mounting Type | Surface Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 1.8 µs |
| Technology | Standard |
| Capacitance @ Vr, F | 9pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | Sub SMA |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 400 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 1 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 400 V |
