PUUP12J
25NS, 12A, 600V, ULTRA FAST RECOManufacturer: Taiwan Semiconductor Corporation
Categories: Single Diodes
Quality Control: Learn More

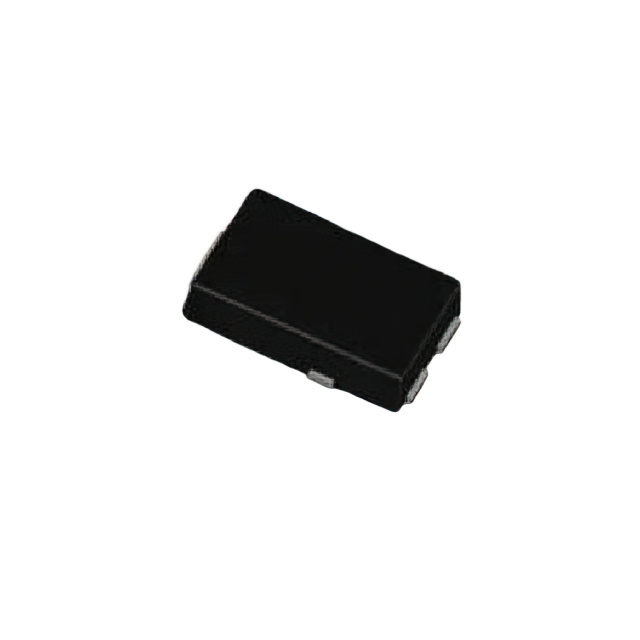

Taiwan Semiconductor Corporation PUUP12J is a 600V, 12A surface mount diode. This standard technology component features an ultra-fast recovery time of 26 ns and a forward voltage (Vf) of 2.1V at 12A. With a reverse leakage current of 5 µA at 600V and a junction capacitance of 92pF at 4V and 1MHz, it is suitable for applications requiring efficient power handling. The component is housed in a TO-277A (SMPC) package and is supplied on tape and reel. Its operating temperature range is -55°C to 150°C. This device finds utility in power supply circuits, motor control, and industrial applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 72 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-277, 3-PowerDFN |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 26 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 92pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 12A |
| Supplier Device Package | TO-277A (SMPC) |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 2.1 V @ 12 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 600 V |
