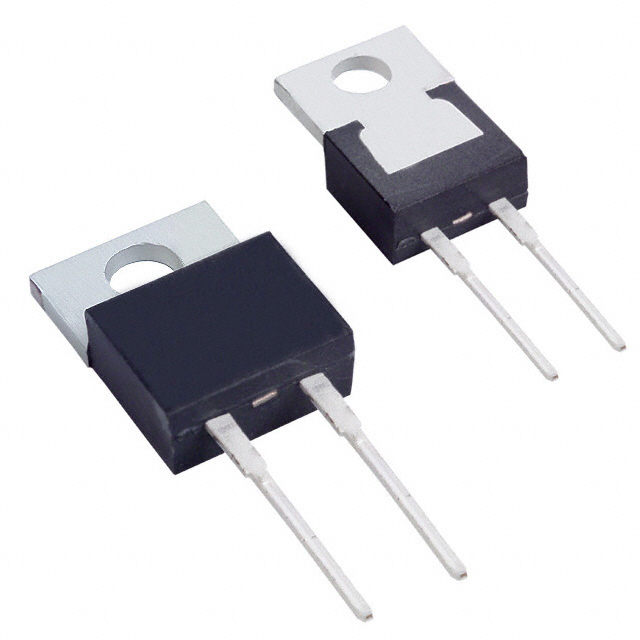

MBR745 C0G

DIODE SCHOTTKY 45V 7.5A TO220AC

Manufacturer: Taiwan Semiconductor Corporation

Categories: Single Diodes

Quality Control: Learn More

Taiwan Semiconductor Corporation MBR745-C0G is a Schottky diode with a maximum DC reverse voltage of 45V and an average rectified current handling of 7.5A. Featuring a low forward voltage drop of 840mV at 15A, this component is designed for efficient rectification. The MBR745-C0G operates within a junction temperature range of -55°C to 150°C and exhibits a reverse leakage current of 100 µA at 45V. Its TO-220AC package with through-hole mounting facilitates integration into various electronic designs. This diode is commonly employed in power supply circuits, voltage clamping, and reverse polarity protection across industries such as industrial automation, consumer electronics, and telecommunications. The fast recovery characteristic, classified as <= 500ns, further enhances its suitability for demanding applications.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TubeDatasheet:
Technical Details:
PackagingTube
Package / CaseTO-220-2
Mounting TypeThrough Hole
SpeedFast Recovery =< 500ns, > 200mA (Io)
TechnologySchottky
Capacitance @ Vr, F-
Current - Average Rectified (Io)7.5A
Supplier Device PackageTO-220AC
Operating Temperature - Junction-55°C ~ 150°C
Voltage - DC Reverse (Vr) (Max)45 V
Voltage - Forward (Vf) (Max) @ If840 mV @ 15 A
Current - Reverse Leakage @ Vr100 µA @ 45 V
