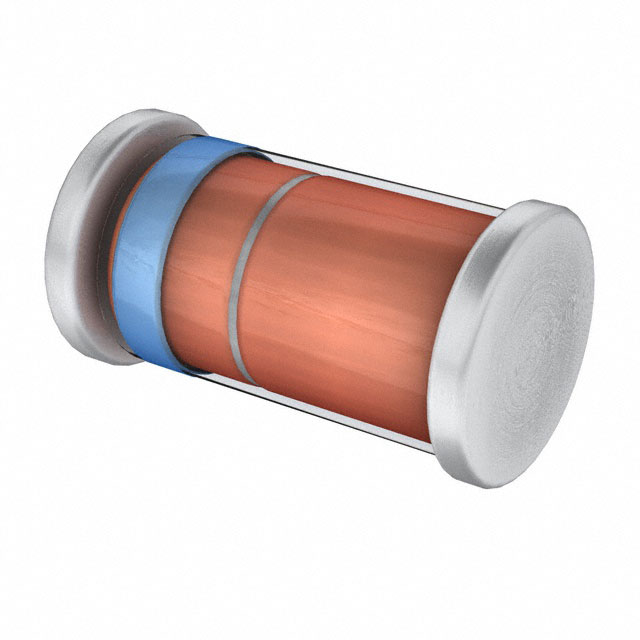

LL4005G L0G
DIODE GEN PURP 600V 1A MELFManufacturer: Taiwan Semiconductor Corporation
Categories: Single Diodes
Quality Control: Learn More
Taiwan Semiconductor Corporation LL4005G-L0G is a general-purpose rectifying diode with a 600V reverse voltage rating and a 1A average rectified current capability. This MELF packaged device features a maximum forward voltage of 1.1V at 1A and a low reverse leakage of 5 µA at 600V. Its standard recovery speed exceeds 500ns for loads greater than 200mA. The component's capacitance is specified at 15pF at 4V and 1MHz. Operating across a junction temperature range of -65°C to 150°C, the LL4005G-L0G is suitable for surface mount applications. Common industries utilizing this type of component include industrial equipment and power supplies. It is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-213AB, MELF |
| Mounting Type | Surface Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Capacitance @ Vr, F | 15pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | MELF |
| Operating Temperature - Junction | -65°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 1 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 600 V |
