HT15G-K
50NS, 1A, 400V, HIGH EFFICIENT RManufacturer: Taiwan Semiconductor Corporation
Categories: Single Diodes
Quality Control: Learn More

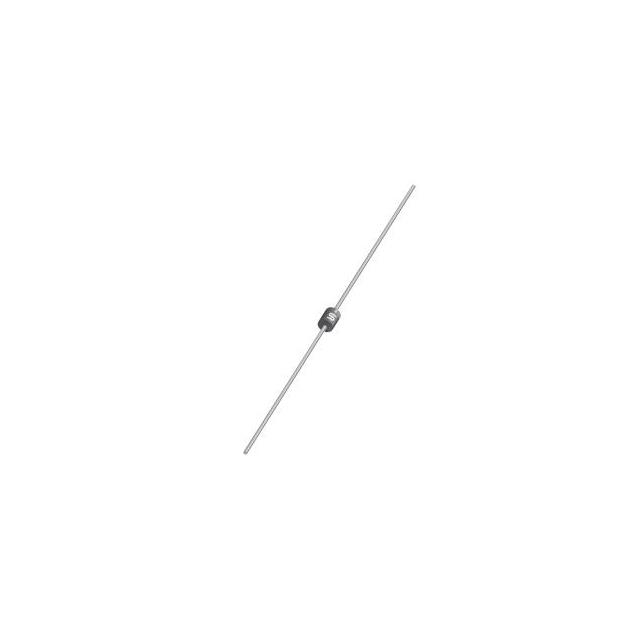

Taiwan Semiconductor Corporation HT15G-K is a fast recovery diode with a 400V reverse voltage rating and a 1A average rectified current. This through-hole component, packaged as TS-1, features a maximum forward voltage of 1.3V at 1A and a reverse leakage of 5µA at 400V. Its reverse recovery time is specified at 50 ns, classifying it within the fast recovery speed category. The diode exhibits a capacitance of 15pF at 4V and 1MHz. Operating from -55°C to 150°C, this device is suitable for applications in power supplies, motor control, and lighting.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 99 week(s)Product Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | T-18, Axial |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 50 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 15pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | TS-1 |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Grade | - |
| Voltage - DC Reverse (Vr) (Max) | 400 V |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 1 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 400 V |
| Qualification | - |
