BAT201M3 RRG
1A, 20V, SCHOTTKY RECTIFIERManufacturer: Taiwan Semiconductor Corporation
Categories: Single Diodes
Quality Control: Learn More

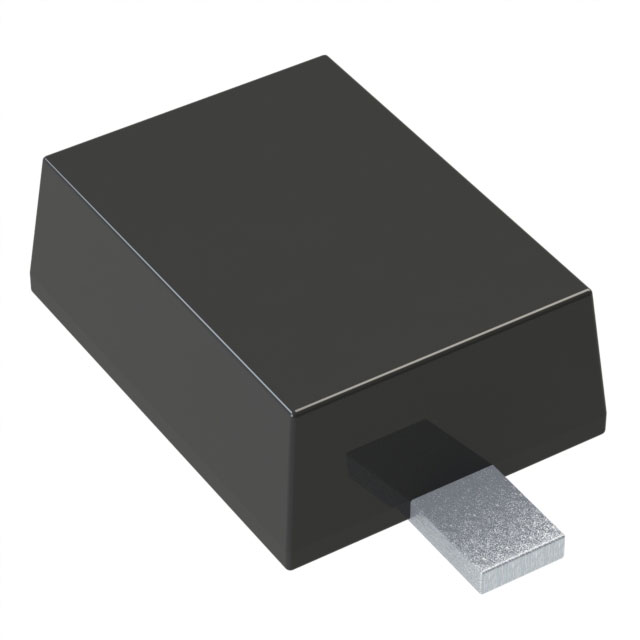

Diode 20 V 1A Surface Mount SOD-323F
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-90, SOD-323F |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | 29pF @ 5V, 1MHz |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | SOD-323F |
| Operating Temperature - Junction | -55°C ~ 125°C |
| Voltage - DC Reverse (Vr) (Max) | 20 V |
| Voltage - Forward (Vf) (Max) @ If | 290 mV @ 10 mA |
| Current - Reverse Leakage @ Vr | 50 µA @ 15 V |
