1T7G-K
1A, 1000V, STANDARD RECTIFIERManufacturer: Taiwan Semiconductor Corporation
Categories: Single Diodes
Quality Control: Learn More

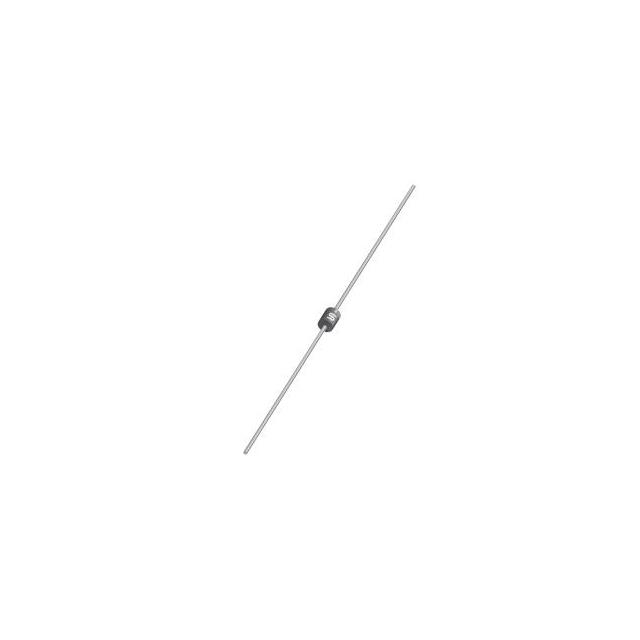

Taiwan Semiconductor Corporation's 1T7G-K is a standard recovery diode with a 1A average rectified current rating and a maximum DC reverse voltage of 1000V. This through-hole component, housed in a TS-1 axial package, features a forward voltage of 1V at 1A and a reverse leakage current of 5µA at 1000V. The device exhibits a capacitance of 10pF at 4V and 1MHz. Operating across a junction temperature range of -55°C to 150°C, the 1T7G-K is suitable for applications requiring reliable rectification in power supplies, lighting systems, and industrial control equipment. Its standard recovery time exceeds 500ns, making it a robust choice for general-purpose rectification tasks.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 99 week(s)Product Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | T-18, Axial |
| Mounting Type | Through Hole |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Capacitance @ Vr, F | 10pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | TS-1 |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Grade | - |
| Voltage - DC Reverse (Vr) (Max) | 1000 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 1 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 1000 V |
| Qualification | - |
