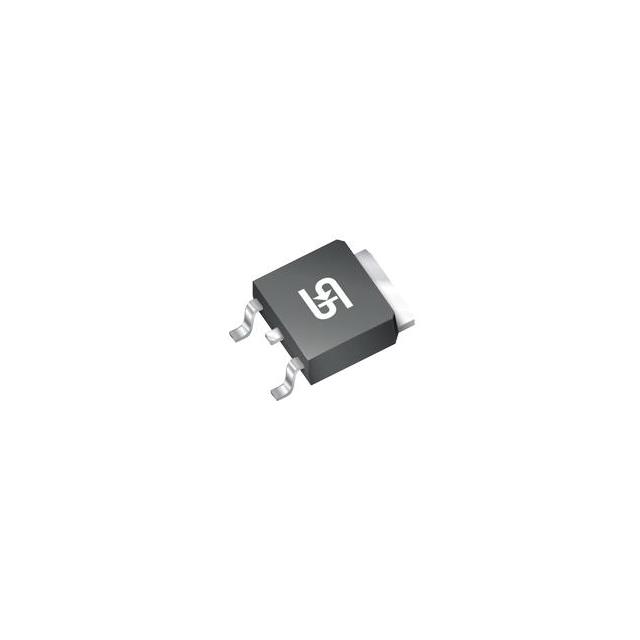

TSB772CP ROG
TO-252 (D-PAK), -50, -3,Manufacturer: Taiwan Semiconductor Corporation
Categories: Single Bipolar Transistors
Quality Control: Learn More
Bipolar (BJT) Transistor PNP 30 V 3 A 190MHz 8.9 W Surface Mount TO-252 (DPAK)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Mounting Type | Surface Mount |
| Transistor Type | PNP |
| Operating Temperature | 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 200mA, 2A |
| Current - Collector Cutoff (Max) | 1µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 1A, 2V |
| Frequency - Transition | 190MHz |
| Supplier Device Package | TO-252 (DPAK) |
| Current - Collector (Ic) (Max) | 3 A |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Power - Max | 8.9 W |
