TSA1036CX RFG
TRANS PNP 60V 0.6A SOT23Manufacturer: Taiwan Semiconductor Corporation
Categories: Single Bipolar Transistors
Quality Control: Learn More
Taiwan Semiconductor Corporation TSA1036CX-RFG is a PNP bipolar junction transistor designed for general-purpose amplification and switching applications. This component features a 60V collector-emitter breakdown voltage and a maximum continuous collector current of 600mA. It offers a transition frequency of 200MHz and a power dissipation rating of 225mW. The device exhibits a minimum DC current gain (hFE) of 100 at 150mA and 10V. The saturation voltage (Vce(sat)) is specified at a maximum of 400mV with a base current of 15mA driving a collector current of 150mA. The TSA1036CX-RFG is housed in a SOT-23 surface-mount package and is supplied on tape and reel. Its specifications make it suitable for use in industrial control, consumer electronics, and telecommunications equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Mounting Type | Surface Mount |
| Transistor Type | PNP |
| Operating Temperature | 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 400mV @ 15mA, 150mA |
| Current - Collector Cutoff (Max) | 10nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 150mA, 10V |
| Frequency - Transition | 200MHz |
| Supplier Device Package | SOT-23 |
| Current - Collector (Ic) (Max) | 600 mA |
| Voltage - Collector Emitter Breakdown (Max) | 60 V |
| Power - Max | 225 mW |
Request a Quote
Clients Also Buy

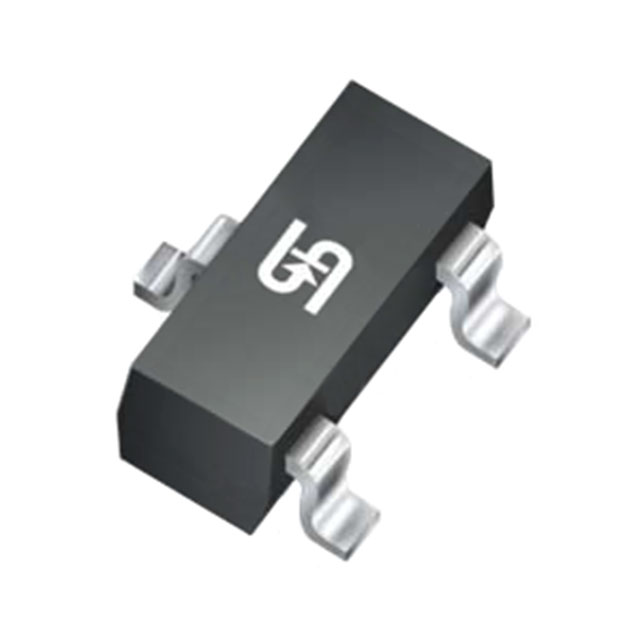

MMBT3904L RFG
