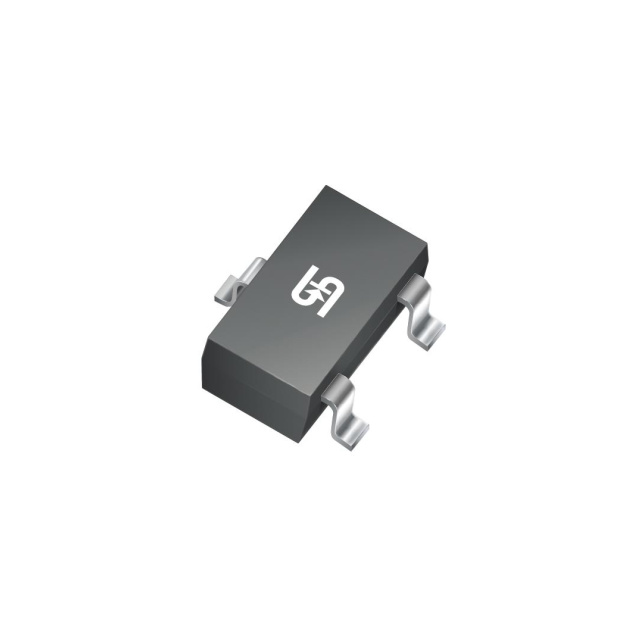

MMBT3906T RSG
SOT-523, 40, -0.2, PNP BIPOLAR TManufacturer: Taiwan Semiconductor Corporation
Categories: Single Bipolar Transistors
Quality Control: Learn More
Bipolar (BJT) Transistor PNP 40 V 200 mA 250MHz 150 mW Surface Mount SOT-523
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-523 |
| Mounting Type | Surface Mount |
| Transistor Type | PNP |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 400mV @ 5mA, 50mA |
| Current - Collector Cutoff (Max) | 50nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 10mA, 1V |
| Frequency - Transition | 250MHz |
| Supplier Device Package | SOT-523 |
| Current - Collector (Ic) (Max) | 200 mA |
| Voltage - Collector Emitter Breakdown (Max) | 40 V |
| Power - Max | 150 mW |
