TS4264GCW50
150MA 5V ULTRA LOW DROPOUT VOLTAManufacturer: Taiwan Semiconductor Corporation
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More

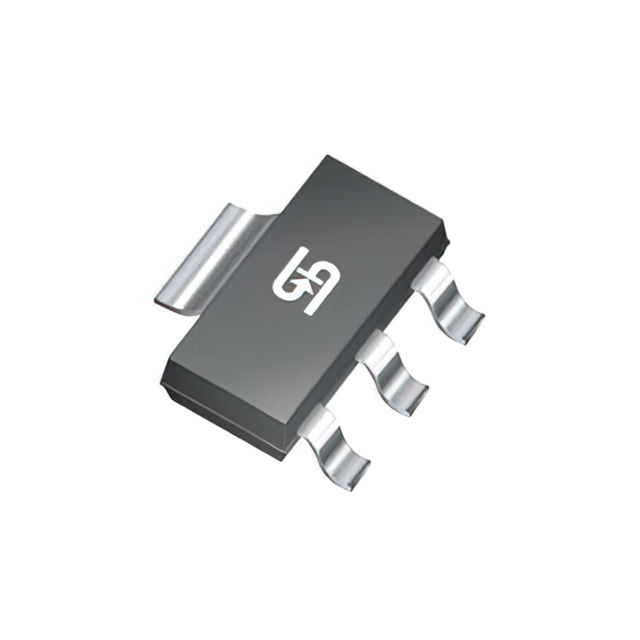

Taiwan Semiconductor Corporation's TS4264GCW50 is a positive fixed output voltage regulator IC. This device delivers a regulated 5V output with a maximum output current of 150mA. The ultra-low dropout voltage is 0.5V at 100mA, minimizing power dissipation and maximizing efficiency. Featuring excellent power supply rejection ratio (PSRR) of 68dB at 100Hz, the TS4264GCW50 is suitable for noise-sensitive applications. Protection features include over-temperature, reverse polarity, and short-circuit protection. The quiescent current is a mere 70 µA. This component is housed in a SOT-223 package and is supplied on tape and reel. Typical applications include consumer electronics, industrial control systems, and automotive electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 44 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-261-4, TO-261AA |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 150mA |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 70 µA |
| Voltage - Input (Max) | 45V |
| Number of Regulators | 1 |
| Supplier Device Package | SOT-223 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 5V |
| Control Features | - |
| PSRR | 68dB (100Hz) |
| Voltage Dropout (Max) | 0.5V @ 100mA |
| Protection Features | Over Temperature, Reverse Polarity, Short Circuit |
| Current - Supply (Max) | 4 mA |
