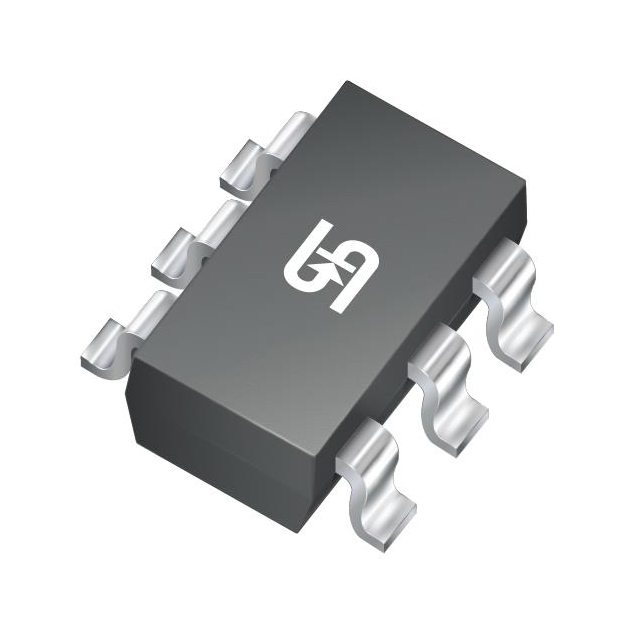

TSM2N7002AKDCU6 RFG
MOSFET 2N-CH 60V 0.22A SOT363Manufacturer: Taiwan Semiconductor Corporation
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 60V 220mA (Ta) 240mW (Ta) Surface Mount SOT-363
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 240mW (Ta) |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25°C | 220mA (Ta) |
| Input Capacitance (Ciss) (Max) @ Vds | 30pF @ 30V |
| Rds On (Max) @ Id, Vgs | 2.5Ohm @ 220mA, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 0.91nC @ 4.5V |
| FET Feature | Logic Level Gate |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Supplier Device Package | SOT-363 |
