TSM110NB04LDCR
MOSFET 2N-CH 40V 10A/48A 8DFNManufacturer: Taiwan Semiconductor Corporation
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 40V 10A (Ta), 48A (Tc) 2W (Ta), 48W (Tc) Surface Mount 8-PDFN (5x6)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerTDFN |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 2W (Ta), 48W (Tc) |
| Drain to Source Voltage (Vdss) | 40V |
| Current - Continuous Drain (Id) @ 25°C | 10A (Ta), 48A (Tc) |
| Input Capacitance (Ciss) (Max) @ Vds | 1269pF @ 20V |
| Rds On (Max) @ Id, Vgs | 11mOhm @ 10A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 23nC @ 10V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Supplier Device Package | 8-PDFN (5x6) |
Request a Quote
Clients Also Buy

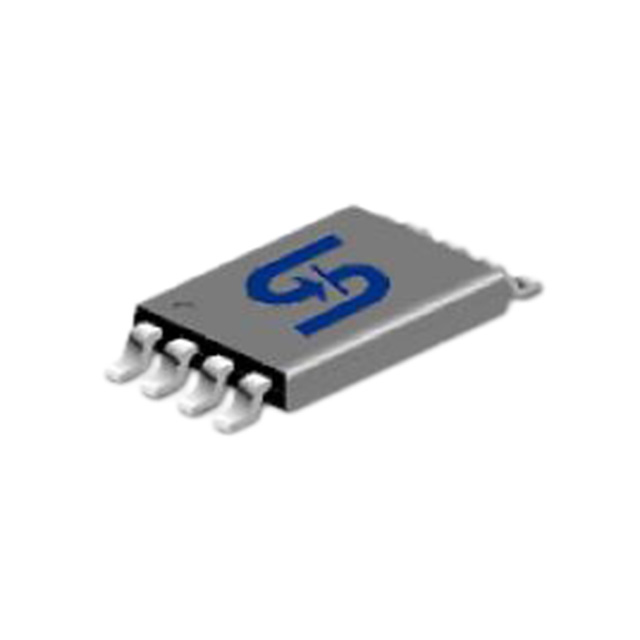

TSM6968SDCA RVG
MOSFET 2N-CH 20V 6.5A 8TSSOP

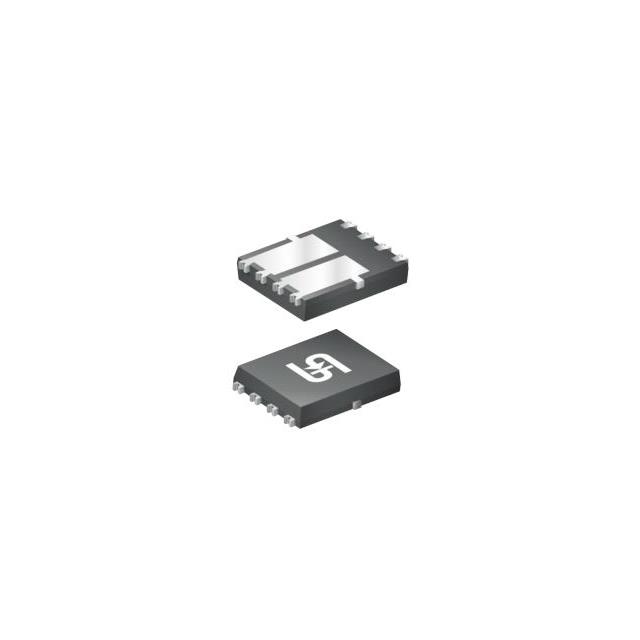

TSM076NH04LDCR RLG
MOSFET 2N-CH 40V 14A/34A 8PDFNU

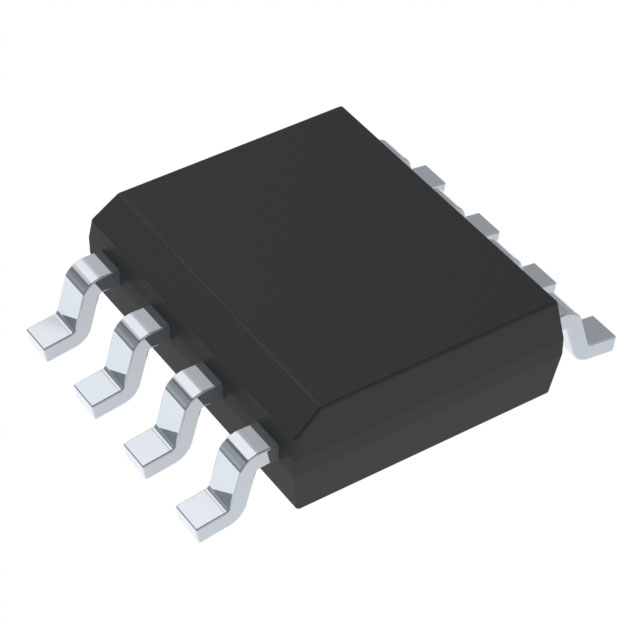

TSM9926DCS RLG
