SF3003PTH
35NS, 30A, 150V, SUPER FAST RECOManufacturer: Taiwan Semiconductor Corporation
Categories: Diode Arrays
Quality Control: Learn More

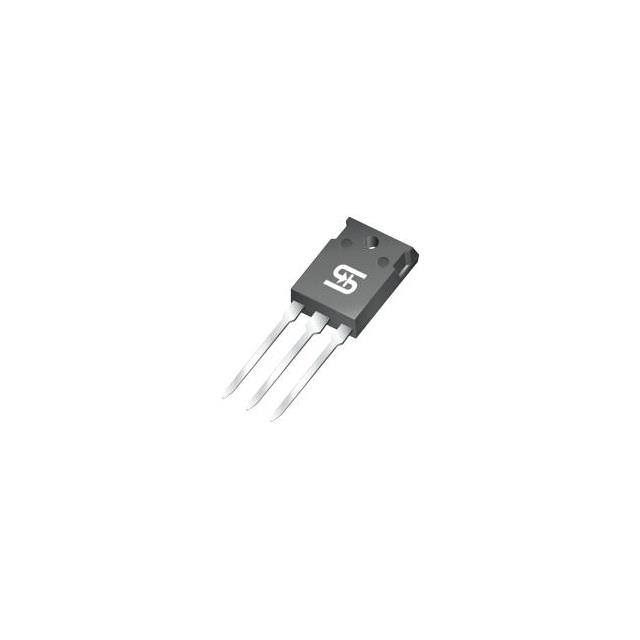

Diode Array 1 Pair Common Cathode 150 V 30A Through Hole TO-247-3
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 35 ns |
| Technology | Standard |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 30A |
| Supplier Device Package | TO-247AD (TO-3P) |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Grade | Automotive |
| Voltage - DC Reverse (Vr) (Max) | 150 V |
| Voltage - Forward (Vf) (Max) @ If | 950 mV @ 15 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 150 V |
| Qualification | AEC-Q101 |
