MBRS2535CTH
25A, 35V, PLANAR SCHOTTKYManufacturer: Taiwan Semiconductor Corporation
Categories: Diode Arrays
Quality Control: Learn More

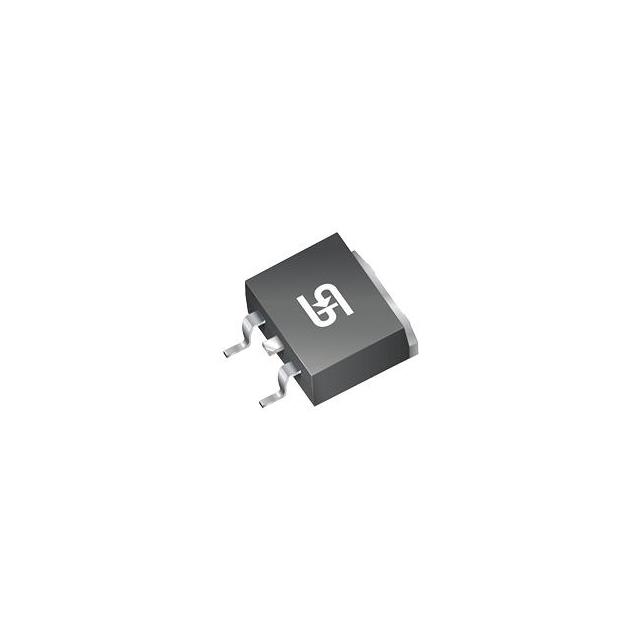

Diode Array 1 Pair Common Cathode 35 V 25A Surface Mount TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 25A |
| Supplier Device Package | TO-263AB (D2PAK) |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Grade | Automotive |
| Voltage - DC Reverse (Vr) (Max) | 35 V |
| Voltage - Forward (Vf) (Max) @ If | 820 mV @ 25 A |
| Current - Reverse Leakage @ Vr | 200 µA @ 35 V |
| Qualification | AEC-Q101 |
