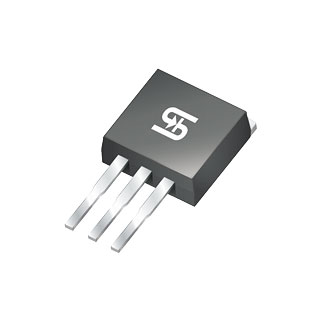

MBRI20100CT
DIODE ARR SCHOTT 100V 20A I2PAKManufacturer: Taiwan Semiconductor Corporation
Categories: Diode Arrays
Quality Control: Learn More
Taiwan Semiconductor Corporation MBRI20100CT is a Schottky diode array featuring one pair of common cathode configurations. This component offers a maximum DC reverse voltage of 100V and a forward voltage drop of 950mV at a forward current of 20A. The average rectified current per diode is 20A, with a reverse leakage of 100 µA at 100V. Designed for through-hole mounting, it utilizes the I2PAK package (TO-262-3 Long Leads, I2PAK, TO-262AA). The operating junction temperature range is -55°C to 150°C. This device is suitable for applications in power supply rectification and switching power supplies.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: Not For New DesignsPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-262-3 Long Leads, I2PAK, TO-262AA |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 20A |
| Supplier Device Package | I2PAK |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 950 mV @ 20 A |
| Current - Reverse Leakage @ Vr | 100 µA @ 100 V |
