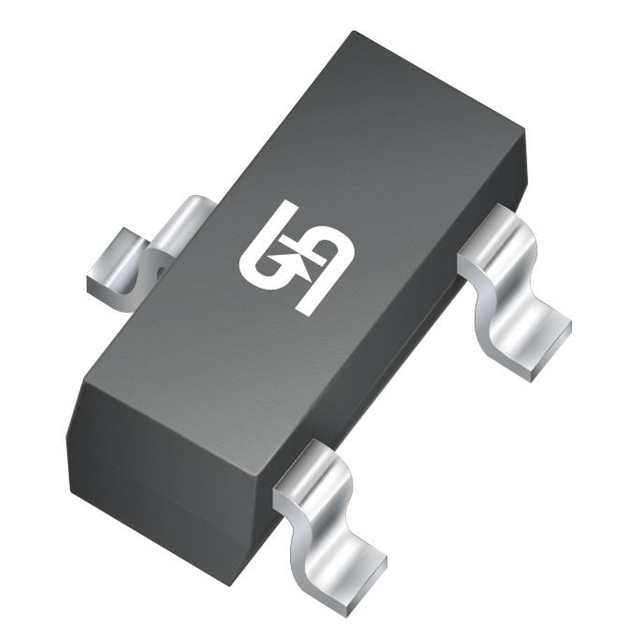

BAV99L RFG

DIODE ARRAY GP 70V 200MA SOT23

Manufacturer: Taiwan Semiconductor Corporation

Categories: Diode Arrays

Quality Control: Learn More

Taiwan Semiconductor Corporation BAV99L-RFG is a dual series-connected diode array designed for general-purpose applications. This component features a maximum repetitive reverse voltage (Vrrm) of 70V and an average rectified forward current (Io) of 200mA per diode. The reverse leakage current is specified at 2.5 µA at 70V. With a forward voltage (Vf) of 1.25V at 150mA, this device utilizes standard diode technology. The BAV99L-RFG is housed in a SOT-23 package (TO-236-3, SC-59) and is suitable for surface mounting. Key specifications include a fast reverse recovery time (trr) of 6 ns, indicating suitability for switching applications. The operating junction temperature range is -55°C to 150°C. This diode array is commonly found in industrial and consumer electronics equipment. The supplied part is packaged in Cut Tape (CT).

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Cut Tape (CT)Datasheet:
Technical Details:
PackagingCut Tape (CT)
Package / CaseTO-236-3, SC-59, SOT-23-3
Mounting TypeSurface Mount
SpeedSmall Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)6 ns
TechnologyStandard
Diode Configuration1 Pair Series Connection
Current - Average Rectified (Io) (per Diode)200mA
Supplier Device PackageSOT-23
Operating Temperature - Junction-55°C ~ 150°C
Voltage - DC Reverse (Vr) (Max)70 V
Voltage - Forward (Vf) (Max) @ If1.25 V @ 150 mA
Current - Reverse Leakage @ Vr2.5 µA @ 70 V
