YBS3007G
BRIDGE RECT 1PHASE 1KV 3A YBSManufacturer: Taiwan Semiconductor Corporation
Categories: Bridge Rectifiers
Quality Control: Learn More

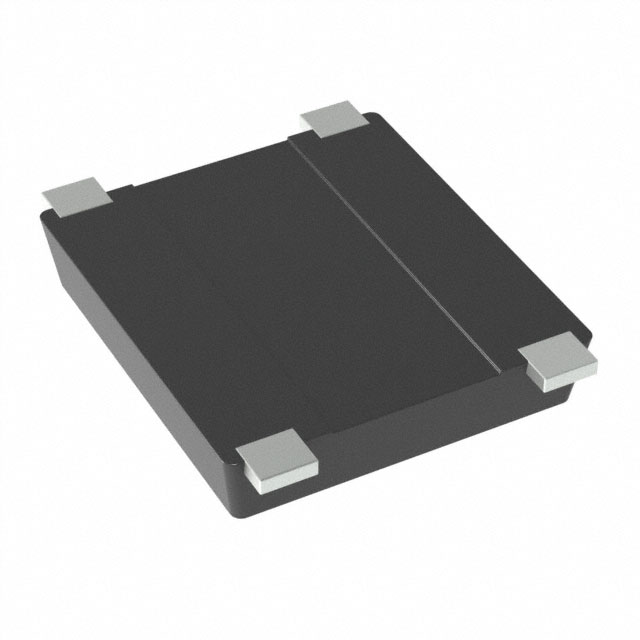

Taiwan Semiconductor Corporation YBS3007G is a single-phase bridge rectifier designed for demanding applications. This surface mount component offers a peak reverse voltage of 1 kV and an average rectified output current of 3 A. Featuring a standard technology, it exhibits a forward voltage (Vf) of 1.1 V at its rated current. The device boasts a low reverse leakage current of 5 µA at 1000 V. Operating across a wide temperature range from -55°C to 150°C, it is supplied in a 4-SMD, Flat Leads package, specifically the YBS supplier device package, presented in Tape & Reel (TR) packaging. This rectifier is suitable for use in power supplies, automotive electronics, and industrial control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, Flat Leads |
| Mounting Type | Surface Mount |
| Diode Type | Single Phase |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | Standard |
| Supplier Device Package | YBS |
| Voltage - Peak Reverse (Max) | 1 kV |
| Current - Average Rectified (Io) | 3 A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 3 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 1000 V |
