MBS10H
BRIDGE RECT 1PHASE 1KV 500MA MBSManufacturer: Taiwan Semiconductor Corporation
Categories: Bridge Rectifiers
Quality Control: Learn More

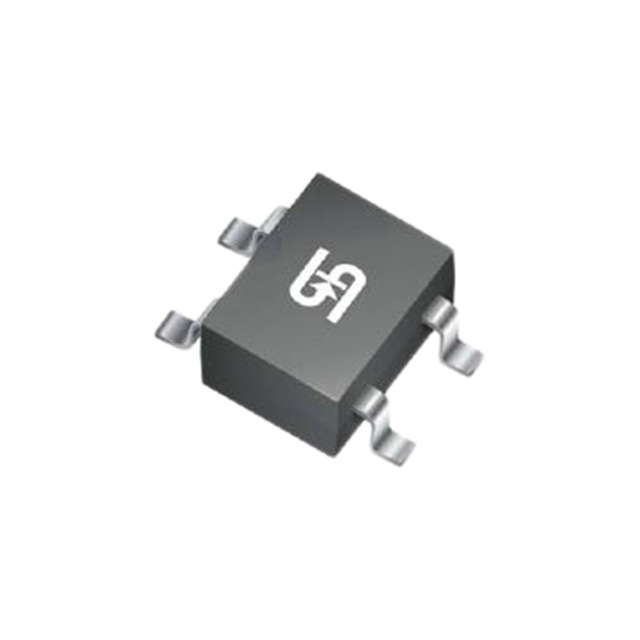

Bridge Rectifier Single Phase Standard 1 kV Surface Mount TO-269AA (MBS)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: Cut Tape (CT)Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | TO-269AA, 4-BESOP |
| Mounting Type | Surface Mount |
| Diode Type | Single Phase |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | Standard |
| Supplier Device Package | TO-269AA (MBS) |
| Grade | Automotive |
| Voltage - Peak Reverse (Max) | 1 kV |
| Current - Average Rectified (Io) | 500 mA |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 400 mA |
| Current - Reverse Leakage @ Vr | 5 µA @ 1000 V |
| Qualification | AEC-Q101 |
Request a Quote
