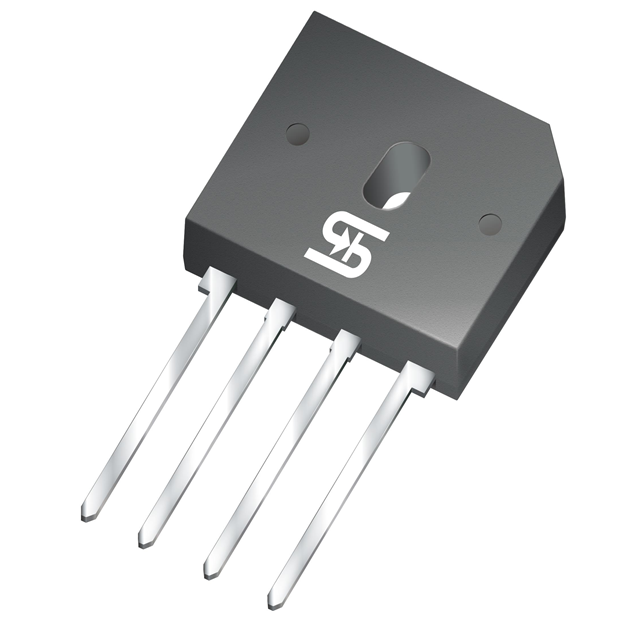

GBU1506
15A, 800V, STANDARD BRIDGE RECTIManufacturer: Taiwan Semiconductor Corporation
Categories: Bridge Rectifiers
Quality Control: Learn More
Bridge Rectifier Single Phase Standard 800 V Through Hole GBU
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 4-ESIP, GBU |
| Mounting Type | Through Hole |
| Diode Type | Single Phase |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | Standard |
| Supplier Device Package | GBU |
| Voltage - Peak Reverse (Max) | 800 V |
| Current - Average Rectified (Io) | 15 A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 15 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 800 V |
