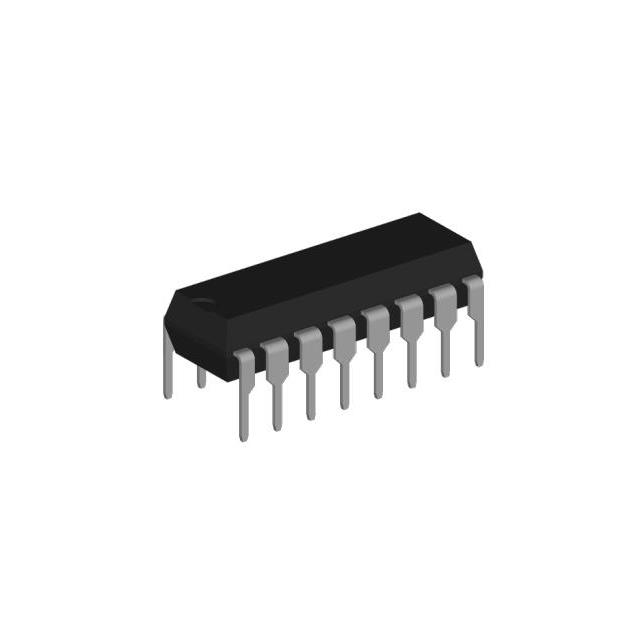

ULN2004AN
TRANS 7NPN DARL 50V 0.5A DIP-16Manufacturer: TAEJIN
Categories: Bipolar Transistor Arrays
Quality Control: Learn More
Bipolar (BJT) Transistor Array 7 NPN Darlington 50V 500mA Through Hole 16-DIP
Additional Information
Series: ULN2004ARoHS Status: RoHS CompliantManufacturer Lead Time: Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Transistor Type | 7 NPN Darlington |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Power - Max | - |
| Current - Collector (Ic) (Max) | 500mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Vce Saturation (Max) @ Ib, Ic | 1.6V @ 500µA, 350mA |
| Current - Collector Cutoff (Max) | 50µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | - |
| Frequency - Transition | - |
| Supplier Device Package | 16-DIP |
| Grade | - |
| Qualification | - |
Request a Quote
