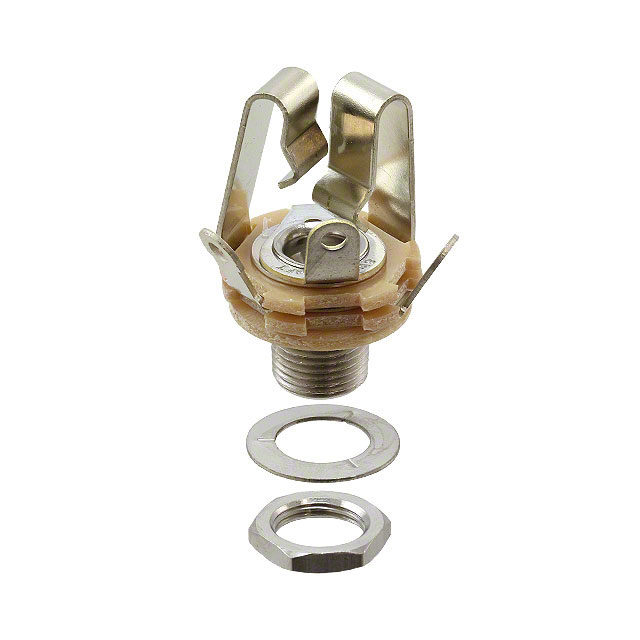

S12B
CONN JACK STEREO 5.23MM PNL MNTManufacturer: Switchcraft Inc.
Categories: Audio Connectors
Quality Control: Learn More
5.23mm (0.206"") Phone Jack Stereo (3 Conductor, TRS) Connector Solder Eyelet(s)
Additional Information
Series: LITTEL-JAX®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Mounting Hardware, Thread Lock |
| Packaging | Bulk |
| Connector Type | Phone Jack |
| Gender | Female |
| Mounting Type | Panel Mount, Through Hole |
| Shielding | Unshielded |
| Operating Temperature | -20°C ~ 65°C |
| Number of Positions/Contacts | 3 Conductors, 3 Contacts |
| Internal Switch(s) | Does Not Contain Switch |
| Signal Lines | Stereo (3 Conductor, TRS) |
| Termination | Solder Eyelet(s) |
| Insulation Color | - |
| Actual Diameter | 0.210"" (5.33mm) |
| Industry Recognized Mating Diameter | 5.23mm (0.206"") |
Request a Quote
