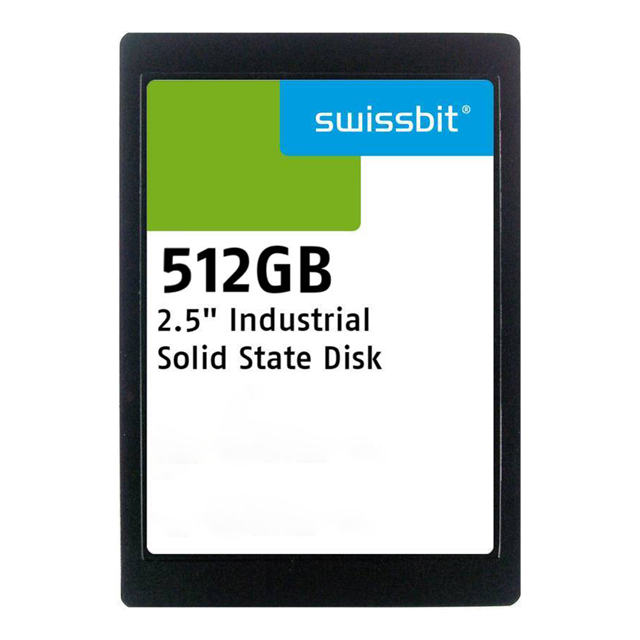

SFSA512GQ1BJATO-I-NC-236-STC
SSD 512GB 2.5"" SLC SATA II 5VManufacturer: Swissbit
Categories: Solid State Drives (SSDs), Hard Disk Drives (HDDs)
Quality Control: Learn More
Swissbit SFSA512GQ1BJATO-I-NC-236-STC is a 512GB X-500 series Solid State Drive (SSD) utilizing Single-Level Cell (SLC) NAND Flash technology. This 2.5-inch SATA II drive operates from a 5V supply and offers sequential read speeds up to 236MB/s and write speeds up to 220MB/s. Designed for demanding environments, it features an industrial operating temperature range of -40°C to 85°C. The component's dimensions are 100.20mm x 69.85mm x 9.30mm, with a maximum current draw of 480mA. This robust storage solution is suitable for applications in industrial automation, networking, and embedded systems where data integrity and reliability are paramount. The SFSA512GQ1BJATO-I-NC-236-STC is supplied in tray packaging.
Additional Information
Series: X-500RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Size / Dimension | 100.20mm x 69.85mm x 9.30mm |
| Memory Size | 512GB |
| Memory Type | Solid State Drive (SSD) FLASH - NAND (SLC) |
| Type | SATA II |
| Weight | 2.82 oz (80.36 g) |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 5V |
| Current - Max | 480mA |
| Form Factor | 2.5"" |
| Speed - Read | 236MB/s |
| Speed - Write | 220MB/s |
Request a Quote
