SFSA4096Q1BR4TO-I-MS-236-STD
SSD 4GB 2.5"" SLC SATA II 5VManufacturer: Swissbit
Categories: Solid State Drives (SSDs), Hard Disk Drives (HDDs)
Quality Control: Learn More

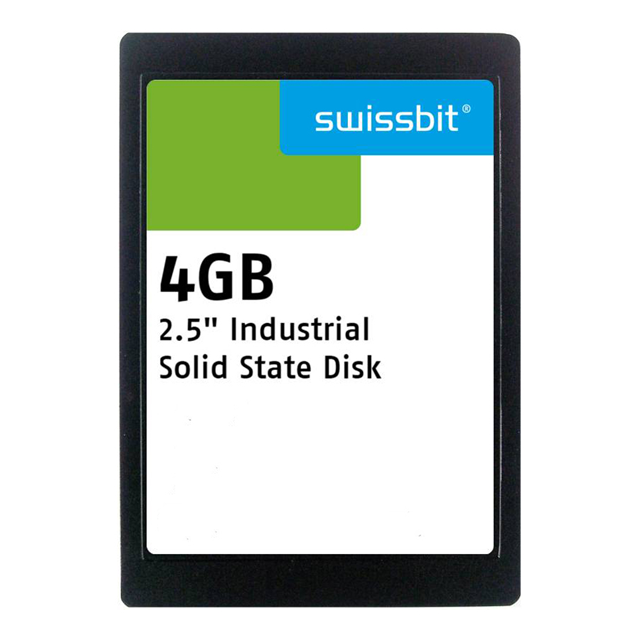

Swissbit X-200 Series SFSA4096Q1BR4TO-I-MS-236-STD, a 4GB SLC NAND Solid State Drive, offers robust performance for demanding applications. This 2.5-inch SATA II drive operates at 5V and features read speeds up to 120MB/s and write speeds up to 95MB/s. Its industrial-grade design ensures reliable operation across a wide temperature range of -40°C to 85°C, making it suitable for industrial automation, embedded systems, and telecommunications infrastructure. The SFSA4096Q1BR4TO-I-MS-236-STD is packaged in a tray, with dimensions of 100.10mm x 69.85mm x 9.20mm and a weight of 90g.
Additional Information
Series: X-200RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Size / Dimension | 100.10mm x 69.85mm x 9.20mm |
| Memory Size | 4GB |
| Memory Type | Solid State Drive (SSD) FLASH - NAND (SLC) |
| Type | SATA II |
| Weight | 3.17 oz (90 g) |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 5V |
| Current - Max | - |
| Form Factor | 2.5"" |
| Speed - Read | 120MB/s |
| Speed - Write | 95MB/s |
