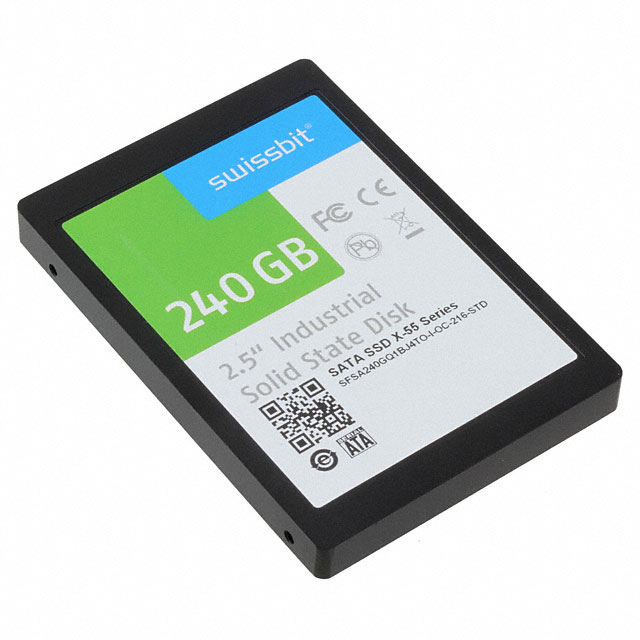

SFSA240GQ1BJ4TO-I-OC-216-STD
SSD 240GB 2.5"" MLC SATA II 5VManufacturer: Swissbit
Categories: Solid State Drives (SSDs), Hard Disk Drives (HDDs)
Quality Control: Learn More
Swissbit X-55 series SFSA240GQ1BJ4TO-I-OC-216-STD Solid State Drive. This 240GB MLC NAND flash storage solution utilizes a SATA II interface within a standard 2.5-inch form factor. Operating at 5V with a maximum current draw of 650mA, it delivers sequential read speeds up to 237MB/s and sequential write speeds up to 151MB/s. The robust design supports an industrial operating temperature range of -40°C to 85°C, making it suitable for demanding applications. Its dimensions are 100.20mm x 69.85mm x 9.30mm. This component finds application in industrial automation, embedded systems, and networking equipment.
Additional Information
Series: X-55RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Size / Dimension | 100.20mm x 69.85mm x 9.30mm |
| Memory Size | 240GB |
| Memory Type | Solid State Drive (SSD) FLASH - NAND (MLC) |
| Type | SATA II |
| Weight | - |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 5V |
| Current - Max | 650mA |
| Form Factor | 2.5"" |
| Speed - Read | 237MB/s |
| Speed - Write | 151MB/s |
Request a Quote
Clients Also Buy

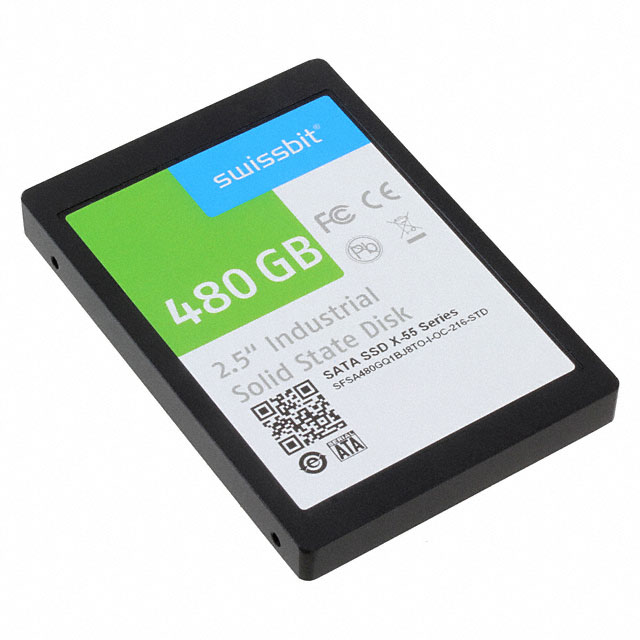

SFSA480GQ1BJ8TO-I-OC-216-STD
