SFSA128GM3AA4TO-I-NC-426-STD
SSD 128GB M.2 SLC SATA III 3.3VManufacturer: Swissbit
Categories: Solid State Drives (SSDs), Hard Disk Drives (HDDs)
Quality Control: Learn More

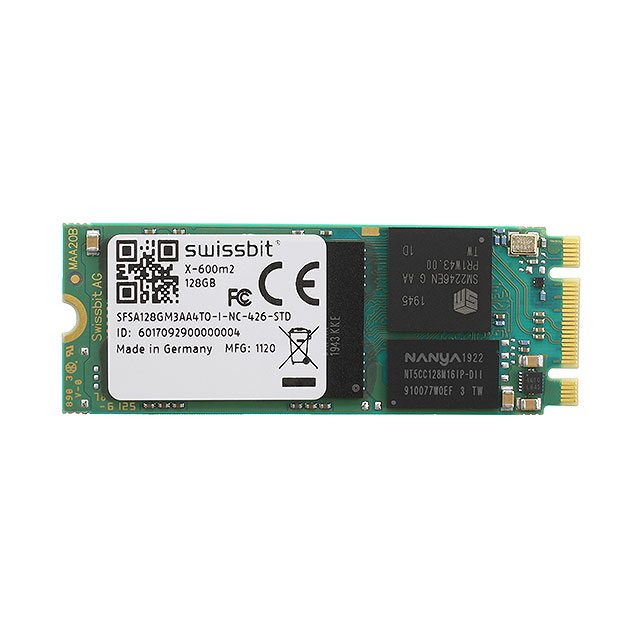

Swissbit SFSA128GM3AA4TO-I-NC-426-STD is a 128GB SLC NAND Solid State Drive in an M.2 2242 form factor, adhering to the SATA III interface specification. This module operates at a 3.3V supply voltage and delivers sequential read speeds of up to 520MB/s and sequential write speeds of up to 405MB/s. Engineered for demanding environments, it features an industrial operating temperature range of -40°C to 85°C. The X-600M2 series SSD is designed for applications requiring high endurance and reliability, commonly found in industrial automation, embedded systems, and telecommunications infrastructure. Its compact M.2 2242 dimensions (60.00mm x 22.00mm x 3.58mm) facilitate integration into space-constrained designs.
Additional Information
Series: X-600M2RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Size / Dimension | 60.00mm x 22.00mm x 3.58mm |
| Memory Size | 128GB |
| Memory Type | Solid State Drive (SSD) FLASH - NAND (SLC) |
| Type | SATA III |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3.3V |
| Current - Max | - |
| Form Factor | M.2 Module |
| Speed - Read | 520MB/s |
| Speed - Write | 405MB/s |
